345-023-523-188

Active

EDAC Inc.

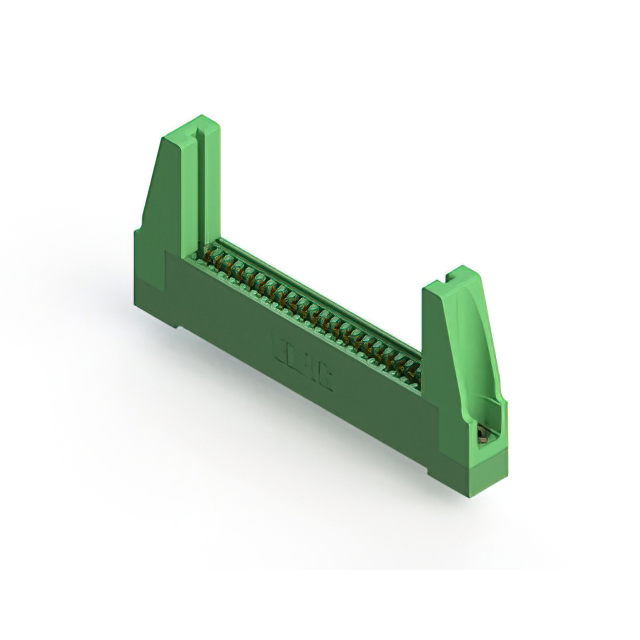

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 23 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-023-523-188

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 23 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-023-523-188

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	23
Number of Positions/Bay/Row [custom]	23
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

345-023 Series

...

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions/Bay/Row [custom]	Pitch [x]	Pitch [x]	Flange Feature	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Features	Gender	Material - Insulation	Read Out	Contact Material	Card Type	Contact Finish	Mounting Type	Number of Rows	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-023-500-188	Green	-40 °C	105 ░C	Solder Eyelet(s)	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	23	Card Guides	Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1
EDAC Inc. 345-023-523-678	Green	-40 °C	105 ░C	Solder	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	23	Card Guides	Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1
EDAC Inc. 345-023-523-188	Green	-40 °C	105 ░C	Solder	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	4-40 Flush Mount Threaded Insert Top Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	23	Card Guides	Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1
EDAC Inc. 345-023-500-402	Green	-40 °C	105 ░C	Solder Eyelet(s)	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in		1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1	3.25 mm	0.128 in
EDAC Inc. 345-023-524-104	Green	-40 °C	105 ░C	Solder	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	Flush Mount Top Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1			3.96 mm	0.156 in
EDAC Inc. 345-023-523-101	Green	-40 °C	105 ░C	Solder	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in		1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1
EDAC Inc. 345-023-558-408	Green	-40 °C	105 ░C	Wire Wrap	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	4-40 Threaded Insert Top Mount Opening	1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole Right Angle	1
EDAC Inc. 345-023-542-112	Green	-40 °C	105 ░C	Wire Wrap	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	Flush Mount Side Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole	1			3.25 mm	0.128 "
EDAC Inc. 345-023-558-402	Green	-40 °C	105 ░C	Wire Wrap	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in		1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole Right Angle	1	3.25 mm	0.128 in
EDAC Inc. 345-023-559-404	Green	-40 °C	105 ░C	Solder	1	10 Áin	0.25 Ám	Cantilever	23	2.54 mm	0.1 in	Top Mount Opening Unthreaded	1.37 mm	0.054 "	1.78 mm	0.07 in	23		Female	Polyester Thermoplastic	Single	Copper Alloy	Non Specified - Single Edge	Gold	Through Hole Right Angle	1			3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.68
Newark	Each	1	$ 12.65
		100	$ 11.14
		250	$ 10.56
		500	$ 8.13
		1000	$ 5.59

Description

General part information

345-023 Series

23 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
