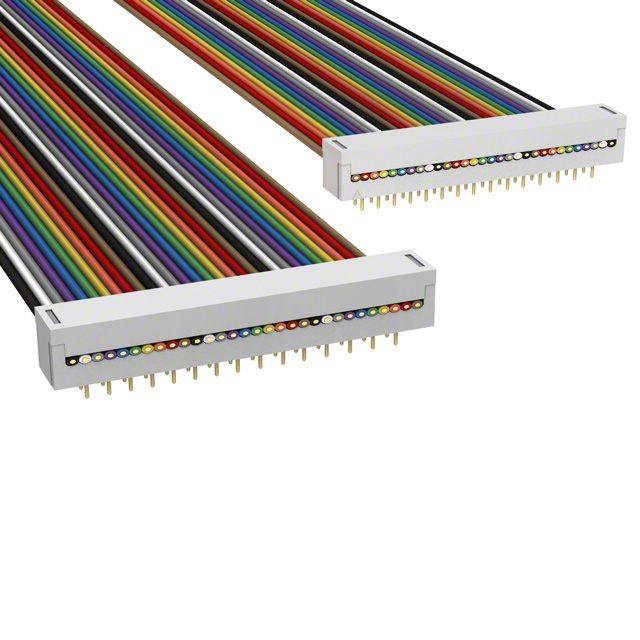

H6MMH-3006M
ActiveAssmann WSW Components
DIP CABLE - HDM30H/AE30M/HDM30H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H6MMH-3006M
ActiveAssmann WSW Components
DIP CABLE - HDM30H/AE30M/HDM30H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H6MMH-3006M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | DIP to DIP |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Length | 152.4 mm |
| Length | 6 " |
| Length | 0.5 ' |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
| Usage | Board In, Socket (0.1") |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.32 | |
| 10 | $ 3.01 | |||
| 25 | $ 2.85 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.65 | |||
| 250 | $ 2.32 | |||
| 500 | $ 2.26 | |||
| 1000 | $ 1.92 | |||
| 2500 | $ 1.79 | |||
Description
General part information
H6MMH-30 Series
30 Position Cable Assembly Rectangular DIP to DIP 0.500' (152.40mm, 6.00")
