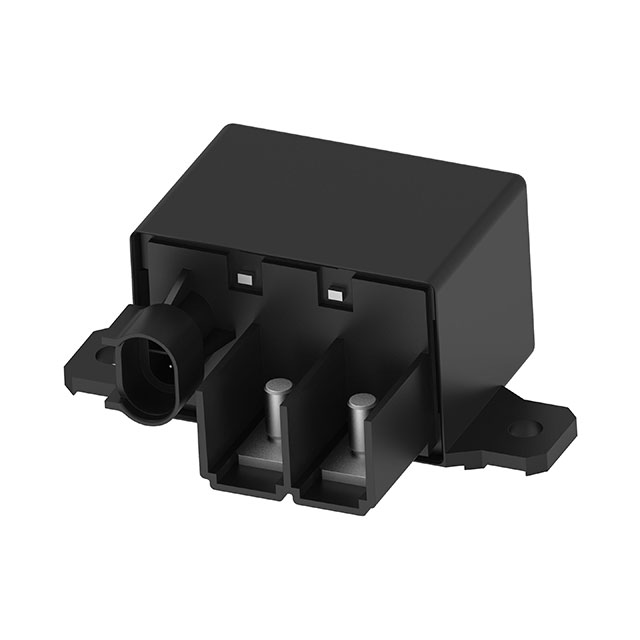

2-1414939-2
ActiveTE Connectivity Potter & Brumfield Relays
RELAY AUTO SPST-NO 130A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1414939-2 |
|---|---|
| Coil Current | 324 mA |
| Coil Power | 3.9 W |
| Coil Resistance | 37 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 130 A |
| Features | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 8 ms |
| Termination Style | Stud |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 93.62 | |
| 10 | $ 81.78 | |||
| 25 | $ 77.50 | |||
| 50 | $ 74.41 | |||
| 100 | $ 71.44 | |||
Description
General part information
1414939 Series
RELAY AUTO SPST-NO 130A 12V
