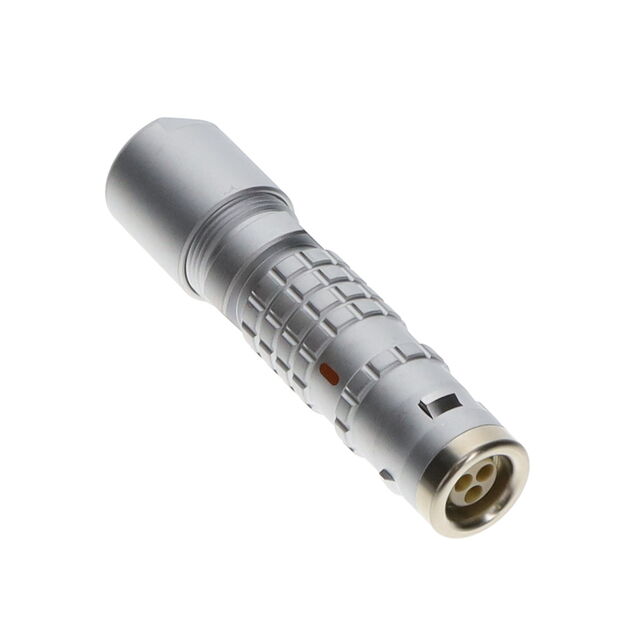

FGL.1K.303.CYMK80

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGL.1K.303.CYMK80

Active

LEMO

CONN PLUG FMALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGL.1K.303.CYMK80

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [custom]	8 mm
Cable Opening [Max] [custom]	0.315 in
Cable Opening [Min] [custom]	0.299 in
Cable Opening [Min] [custom]	7.6 mm
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	12 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	L
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	303
Shielding	Shielded
Termination	Crimp

FGL.1K Series

Part	Primary Material	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Features	Connector Type	Contact Material	Shell Material	Backshell Material, Plating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Color	Current Rating (Amps)	Contact Finish - Mating	Shell Size - Insert	Number of Positions	Orientation	Material Flammability Rating	Shell Finish	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Termination	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
LEMO FGL.1K.308.KLLC55Z	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull	5.5 mm	0.201 in 0.217 in	5.1 mm	Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Black Chrome Brass	59 Áin	1.5 Ám	Free Hanging (In-Line)	Black	5 A	Gold	308	8	L	UL94 V-0
LEMO FGL.1K.303.CLLC45Z	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull				Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	12 A	Gold	303		L	UL94 V-0	Chrome	0.177 in	4.1 mm	0.161 in	4.5 mm
LEMO FGL.1K.303.CLLC60	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull		0.22 in 0.236 in	5.6 mm 6 mm	Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	12 A	Gold	303		L	UL94 V-0	Chrome
LEMO FGL.1K.308.CYMC45Z	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull				Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	5 A	Gold	308	8	L	UL94 V-0	Chrome	0.177 in	4.1 mm	0.161 in	4.5 mm	Crimp
LEMO FGL.1K.303.CYMK80	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull				Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	12 A	Gold	303		L	UL94 V-0	Chrome					Crimp	0.299 in	7.6 mm	8 mm	0.315 in
LEMO FGL.1K.308.CLLC40Z	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull	4 mm	0.142 in 0.157 in	3.6 mm	Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	5 A	Gold	308	8	L	UL94 V-0	Chrome
LEMO FGL.1K.310.CLLC55	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull	5.5 mm	0.201 in 0.217 in	5.1 mm	Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	2.5 A	Gold	310	10	L	UL94 V-0	Chrome
LEMO FGL.1K.308.CLLC45Z	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull				Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	5 A	Gold	308	8	L	UL94 V-0	Chrome	0.177 in	4.1 mm	0.161 in	4.5 mm
LEMO FGL.1K.314.CLLC50	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull				Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	2 A	Gold	314	14	L	UL94 V-0	Chrome	0.197 in	4.6 mm	0.181 in	5 mm
LEMO FGL.1K.302.CLLC50Z	Metal	Shielded	IP66/IP68	-55 °C	200 °C	Push-Pull				Polyetheretherketone (PEEK)	Backshell	Female Sockets Plug	Bronze	Brass	Brass Chrome	59 Áin	1.5 Ám	Free Hanging (In-Line)	Silver	15 A	Gold	302	2	L	UL94 V-0	Chrome	0.197 in	4.6 mm	0.181 in	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.00
		10	$ 61.48
		25	$ 59.12
		50	$ 57.14
		100	$ 53.99

Description

General part information

FGL.1K Series

3 Position Circular Connector Plug, Female Sockets Crimp
