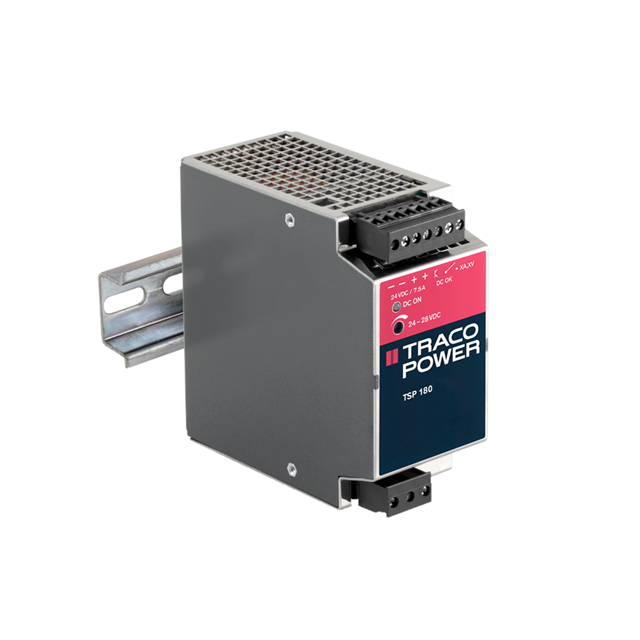

TSP 180-148 EX

Active

Traco Power

AC/DC DIN RAIL SUPPLY 48V 192W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 48V 192W

Technical Specifications

Parameters and characteristics for this part

Specification	TSP 180-148 EX

AC Voltage - Input [Max]	132 VAC, 264 VAC
AC Voltage - Input [Min]	85 VAC, 187 VAC
Applications	ITE (Commercial), Industrial, Hazardous Locations
Approval Agency	cURus, CE, SIQ, CB
Current - Output (Max) [Max]	4 A
Efficiency	87 %
Features	Remote On/Off, Universal Input, IP20, Adjustable Output
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	192 W
Size / Dimension [x]	4.33 in
Size / Dimension [x]	110 mm
Size / Dimension [y]	2.13 in
Size / Dimension [y]	54.1 mm
Size / Dimension [z]	110 mm
Size / Dimension [z]	4.33 in
Voltage - Output 1	48 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1	Approval Agency	Number of Outputs	Power (Watts)	Input Type	Efficiency	Applications	Current - Output (Max) [Max]	Features
Traco Power TSP 180-148 EX	-25 °C	70 °C	132 VAC 264 VAC	85 VAC 187 VAC	110 mm	2.13 in	54.1 mm	4.33 in	4.33 in	110 mm	48 V	CB CE cURus SIQ	1	192 W	AC	87 %	Hazardous Locations Industrial ITE (Commercial)	4 A	Adjustable Output IP20 Remote On/Off Universal Input
