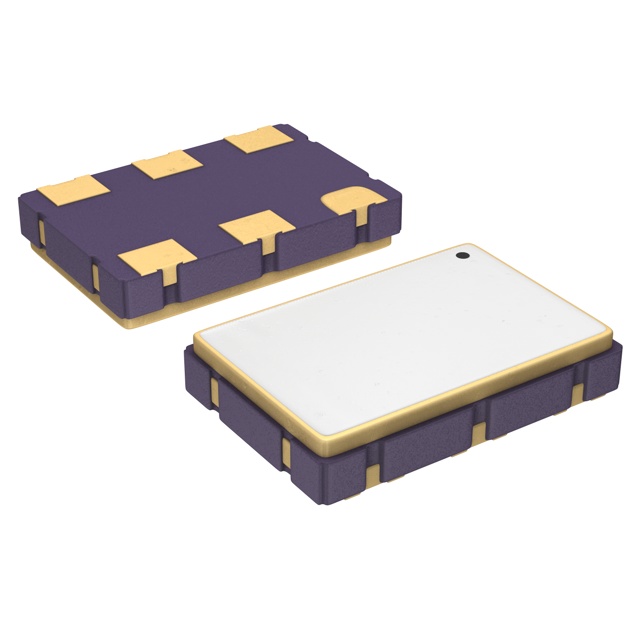

XUQ736050.000000I

Active

Renesas Electronics Corporation

CLCC 7.00X5.00X1.30 MM, 2.54MM P

Search across all available documentation for this part.

Active

Renesas Electronics Corporation

CLCC 7.00X5.00X1.30 MM, 2.54MM P

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Supply	Output	Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Base Resonator	Frequency Stability	Package / Case	Mounting Type	Function	Current - Supply (Max) [Max]
Renesas Electronics Corporation XUQ736050.000000I	7 mm	5 mm	0.276 "	0.197 "	3.3 V	LVPECL	XO (Standard)	85 °C	-40 °C	1.45 mm	0.057 in	50 MHz	Crystal	25 ppm	6-SMD No Lead	Surface Mount	Enable/Disable	115 mA
Renesas Electronics Corporation XUQ736322.273681I	7 mm	5 mm	0.276 "	0.197 "	3.3 V	LVPECL	XO (Standard)	85 °C	-40 °C	1.45 mm	0.057 in	322.273681 MHz	Crystal	25 ppm	6-SMD No Lead	Surface Mount	Enable/Disable	128 mA
Renesas Electronics Corporation XUQ736156.250000I	7 mm	5 mm	0.276 "	0.197 "	3.3 V	LVPECL	XO (Standard)	85 °C	-40 °C	1.45 mm	0.057 in	156.25 MHz	Crystal	25 ppm	6-SMD No Lead	Surface Mount	Enable/Disable	115 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.71
	Digi-Reel®	1	$ 2.71
	Tape & Reel (TR)	1000	$ 1.83

General part information

50 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
