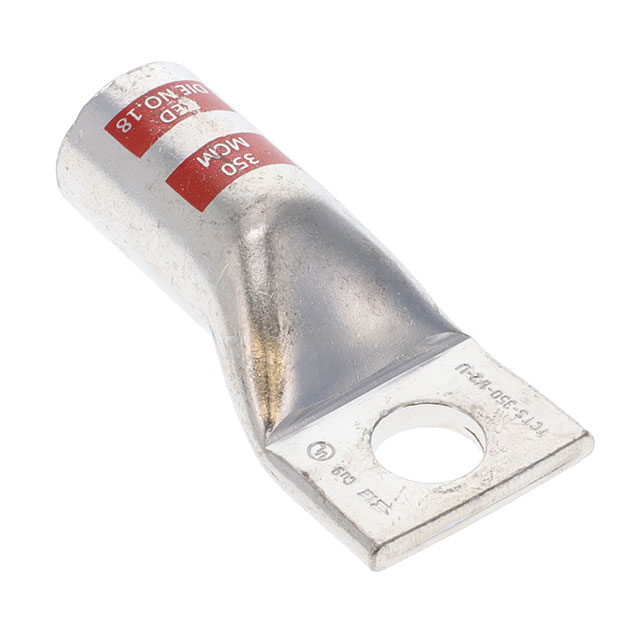

TCTS-350-1/2-U

Active

TE Energy & Utilities

COMPRESSION CONNECTORS

Search across all available documentation for this part.

Active

TE Energy & Utilities

COMPRESSION CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Part	Insulation	Stud/Tab Size	Terminal Style	Termination	Contact Material	Wire Gauge	Wire Gauge	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall [x]	Length - Overall [x]	Color	Mounting Type	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Terminal Type	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]
TE Energy & Utilities TCTS-500-1/2-U	Non-Insulated	1/2 Stud	Single Stud Hole	Barrel Crimp	Copper	500 kcmil	500 kcmil	39.12 mm	1.54 "	3.12 in	79.25 mm	Brown	Free Hanging (In-Line)	0.83 "	21.08 mm	Standard	Tin
TE Energy & Utilities TCTS-350-1/2-U	Non-Insulated	1/2 Stud	Single Stud Hole	Barrel Crimp	Copper	350 MCM (kcmil)		32.77 mm	1.29 in	2.75 in	69.85 mm	Red	Free Hanging (In-Line)	0.7 in	17.78 mm	Standard	Tin
TE Energy & Utilities TCTS-3/0-1/2-U	Non-Insulated	1/2 Stud	Single Stud Hole	Barrel Crimp	Copper					2.579 in	65.5 mm		Free Hanging (In-Line)	0.49 in	12.45 mm	Standard	Tin	23.11 mm	0.91 "
TE Energy & Utilities TCTS-250-1/2-U	Non-Insulated	1/2 Stud	Single Stud Hole	Barrel Crimp	Copper	250 MCM	250 kcmil	27.69 mm	1.09 in	2.67 "	67.82 mm	Yellow	Free Hanging (In-Line)	0.59 "	14.99 mm	Standard	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Connector Rectangular Standard 350MCM (kcmil) 1/2 Stud
