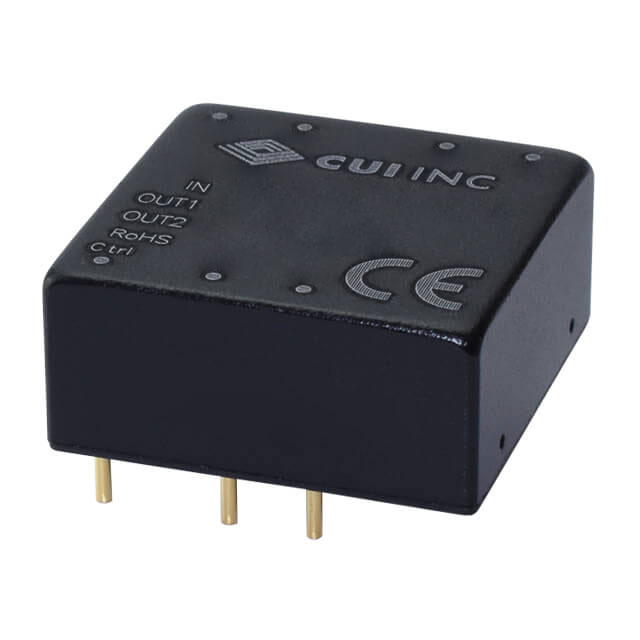

PQD10W-Q48-D512-D
CUI Inc.
DC DC CONVERTER 5V 12V 10W
Deep-Dive with AI
Search across all available documentation for this part.
PQD10W-Q48-D512-D
CUI Inc.
DC DC CONVERTER 5V 12V 10W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PQD10W-Q48-D512-D |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 1 A |
| Current - Output (Max) | 417 mA |
| Efficiency | 84 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.46 in |
| Size / Dimension [z] | 11.7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 20.40 | |
| 5 | $ 20.24 | |||
| 19 | $ 20.09 | |||
Description
General part information
PQD10W Series
Isolated Module DC DC Converter 2 Output 5V 12V 1A, 417mA 18V - 75V Input
