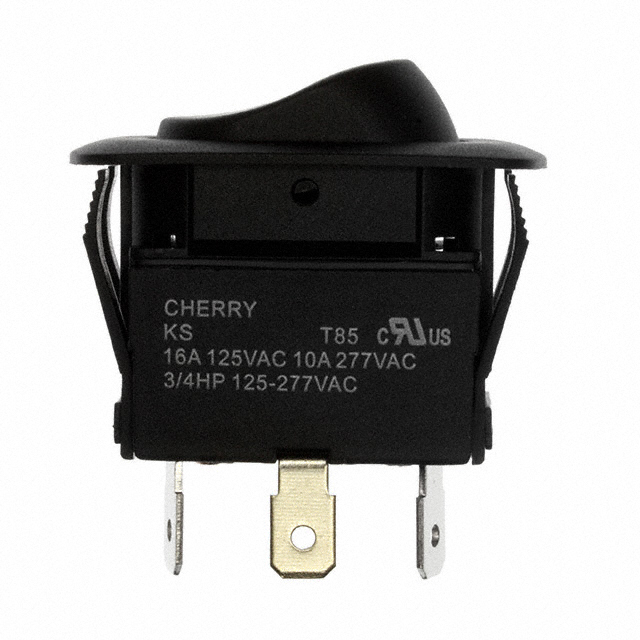

KSF2BNB1BBB

Active

ZF Electronics

SWITCH ROCKER SPDT 16A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER SPDT 16A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KSF2BNB1BBB

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A, 16 A
Electrical Life	6000 Cycles
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Termination Style	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Switch Function	Actuator Type	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Voltage Rating - DC	Actuator Marking	Circuit	Mechanical Life
ZF Electronics KSF2BNB1BBB	Quick Connect - 0.250" (6.3mm)	IP56 - Dust Protected Water Resistant	21.2 mm	36.6 mm	16 A 21 A	125 V	Panel Mount Snap-In	On-On	Concave (Curved)	Black	85 °C	-20 C	6000 Cycles	14 V	No Marking	SPDT	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 4.74

General part information

Rocker Switch SPDT 16A (AC), 21A (DC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
