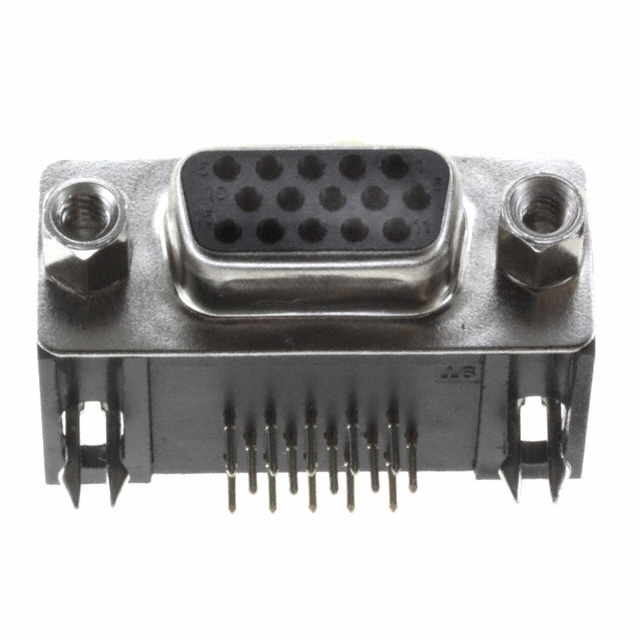

D SUB CONNECTOR, HD15, 15 CONTACTS, RECEPTACLE, SOLDER, DE, 181 SERIES, STEEL BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +1

181-015-213R561

Active

MH Connectors

D SUB CONNECTOR, HD15, 15 CONTACTS, RECEPTACLE, SOLDER, DE, 181 SERIES, STEEL BODY

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	181-015-213R561

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	250 VDC

181-015 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Current Rating (Amps)	Features	Voltage Rating	Color	Backset Spacing	Backset Spacing	Contact Material	Dielectric Material	Contact Finish	Contact Type	Flange Feature	Termination	Connector Style	Shell Material, Finish	Number of Rows	Material Flammability Rating	Contact Finish Thickness	Number of Positions	Mounting Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
MH Connectors 181-015-213R561	DE E	1	High Density	3 A	Board Lock Shielded	250 VDC	Black	8.89 mm	0.35 in	Brass	Polyamide (PA9T) Nylon 9T	Gold	Signal	Female Screwlock (4-40) Mating Side	Solder	D-Sub High Density	Nickel Plated Steel	3	UL94 V-0	Flash	15	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	105 ░C	-55 °C
MH Connectors 181-015-113R561	DE E	1	High Density	3 A	Board Lock Grounding Indents Shielded	250 VDC	Black	8.89 mm	0.35 in	Brass	Polyamide (PA9T) Nylon 9T	Gold	Signal	Female Screwlock (4-40) Mating Side	Solder	D-Sub High Density	Nickel Plated Steel	3	UL94 V-0	Flash	15	Panel Mount Right Angle Through Hole	Male Pins Plug	105 ░C	-55 °C
MH Connectors 181-015-113R531	DE E	1	High Density	3 A	Board Lock Grounding Indents Shielded	250 VDC	Black	8.89 mm	0.35 in	Brass	Polyamide (PA9T) Nylon 9T	Gold	Signal	Housing/Shell (4-40)	Solder	D-Sub High Density	Nickel Plated Steel	3	UL94 V-0	Flash	15	Panel Mount Right Angle Through Hole	Male Pins Plug	105 ░C	-55 °C
MH Connectors 181-015-112-171	DE E	1	High Density	2 A	Ground Strap Grounding Indents		Black	8.89 mm	0.35 in	Brass	Polybutylene Terephthalate (PBT)	Gold	Signal	Housing/Shell (4-40)	Solder	D-Sub High Density		3	UL94 V-0	Flash	15	Panel Mount Right Angle Through Hole	Male Pins Plug
MH Connectors 181-015-213R171	DE E	1	High Density	3 A	Ground Strap Shielded	250 VDC	Black	8.89 mm	0.35 in	Brass	Polyamide (PA9T) Nylon 9T	Gold	Signal	Housing/Shell (4-40)	Solder	D-Sub High Density	Nickel Plated Steel	3	UL94 V-0	Flash	15	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	105 ░C	-55 °C
