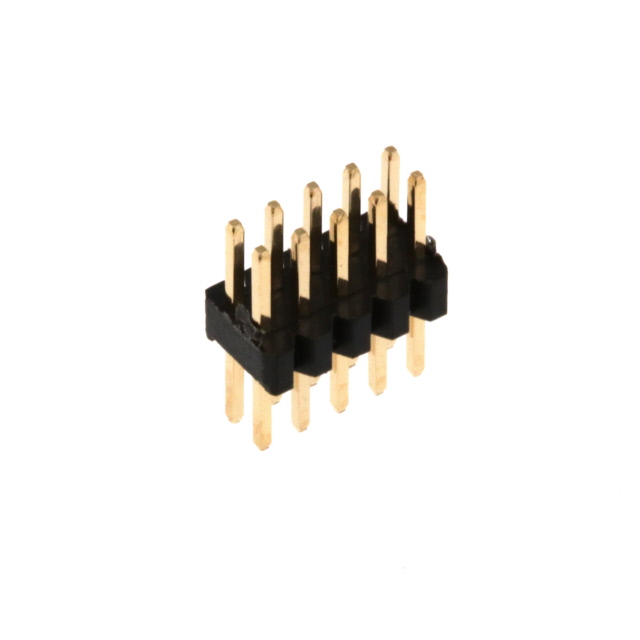

PR20B05VBDN
ActiveMETZ CONNECT USA Inc.
PIN HEADER, THR, DUAL ROW, 1.27
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR20B05VBDN
ActiveMETZ CONNECT USA Inc.
PIN HEADER, THR, DUAL ROW, 1.27
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR20B05VBDN |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Mating | 3 mm |
| Contact Length - Mating | 0.118 in |
| Contact Length - Post | 2.79 mm |
| Contact Length - Post [x] | 0.11 in |
| Contact Material | Copper Zinc |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Polyethylene |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Overall Contact Length | 7.3 mm |
| Overall Contact Length | 0.287 in |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.53 | |
| 10 | $ 0.41 | |||
| 100 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.24 | |||
| 5000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
Description
General part information
PR20B05VB Series
Connector Header Through Hole 10 position 0.050" (1.27mm)
