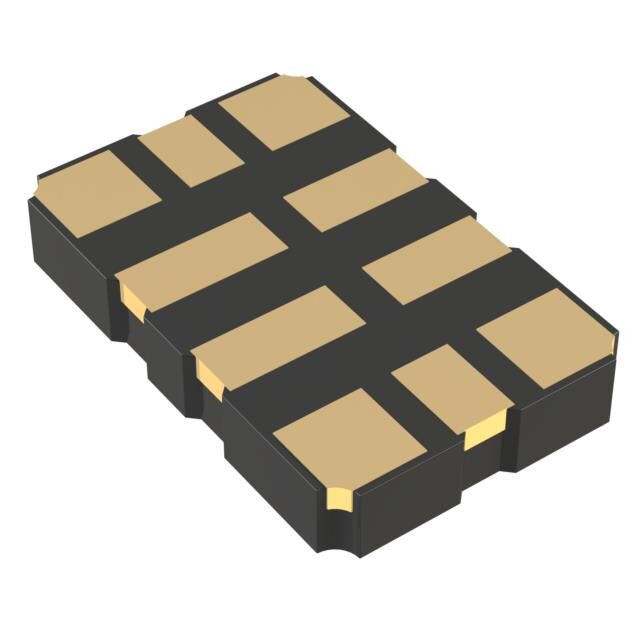

SIT5147AE-FKG33IEB160.000000

Active

SiTime

MEMS OSC TCXO 160.000000 MHZ LVC

Search across all available documentation for this part.

Active

SiTime

MEMS OSC TCXO 160.000000 MHZ LVC

Technical Specifications

Parameters and characteristics for this part

Specification	SIT5147AE-FKG33IEB160.000000

Absolute Pull Range (APR)	96.5 ppm
Base Resonator	MEMS
Current - Supply (Disable) (Max) [Max]	52 mA
Current - Supply (Max) [Max]	62 mA
Frequency	160 MHz
Frequency Stability	500 ppb
Function	Enable/Disable
Height - Seated (Max) [Max] [z]	0.042 in
Height - Seated (Max) [Max] [z]	1.06 mm
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	LVCMOS
Package / Case	10-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Supplier Device Package	10-CQFN (5x3.2)
Type	DCTCXO
Voltage - Supply	3.3 V

Part	Voltage - Supply	Output	Operating Temperature [Max]	Operating Temperature [Min]	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Current - Supply (Max) [Max]	Mounting Type	Frequency	Frequency Stability	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Base Resonator	Package / Case	Function	Current - Supply (Disable) (Max) [Max]	Absolute Pull Range (APR)	Supplier Device Package
SiTime SIT5147AI-FK-33N0A102.400000	3.3 V	LVCMOS	85 °C	-40 °C	DCTCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	102.4 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD No Lead
SiTime SIT5147AE-FKG33IEB160.000000	3.3 V	LVCMOS	105 ░C	-40 °C	DCTCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	160 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD No Lead	Enable/Disable	52 mA	96.5 ppm	10-CQFN (5x3.2)
SiTime SIT5147AE-FK-33E0B160.000000	3.3 V	LVCMOS	105 ░C	-40 °C	TCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	160 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD No Lead	Enable/Disable	52 mA
SiTime SIT5147AE-FK-30E0B65.000000	3 V	LVCMOS	105 ░C	-40 °C	TCXO	0.197 in	0.126 "	3.2 mm	5 mm	62 mA	Surface Mount	65 MHz	500 ppb	0.042 in	1.06 mm	MEMS	10-SMD No Lead	Enable/Disable	52 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	10	$ 603.54

General part information

160 MHz DCTCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
