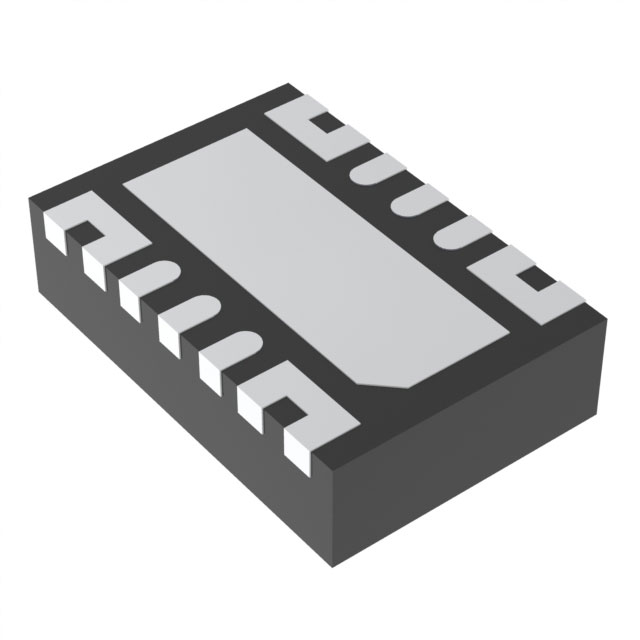

RT9740AGQW
ActiveRichtek USA Inc.
IC LOAD SWITCH WDFN-14T
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT9740AGQW
ActiveRichtek USA Inc.
IC LOAD SWITCH WDFN-14T
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT9740AGQW |
|---|---|
| Current - Output (Max) [Max] | 6 A |
| Features | Slew Rate Controlled, Load Discharge |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | 14-WFDFN Exposed Pad |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 18 mOhm |
| Supplier Device Package | 14-WDFN-TL (3x2) |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 5.5 V |
| Voltage - Load [Min] | 0.8 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.84 | |
| 10 | $ 0.75 | |||
| 25 | $ 0.72 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 1.44 | ||
| 10 | $ 0.91 | |||
| 25 | $ 0.77 | |||
| 100 | $ 0.61 | |||
| 250 | $ 0.53 | |||
| 500 | $ 0.48 | |||
| Tape & Reel (TR) | 1500 | $ 0.38 | ||
| 3000 | $ 0.36 | |||
| 7500 | $ 0.34 | |||
| 10500 | $ 0.33 | |||
Description
General part information
RT9740 Series
Power Switch/Driver 1:1 N-Channel 6A 14-WDFN-TL (3x2)
