UMPT-03-01-L-RA-WT-P-TR

Active

Samtec Inc.

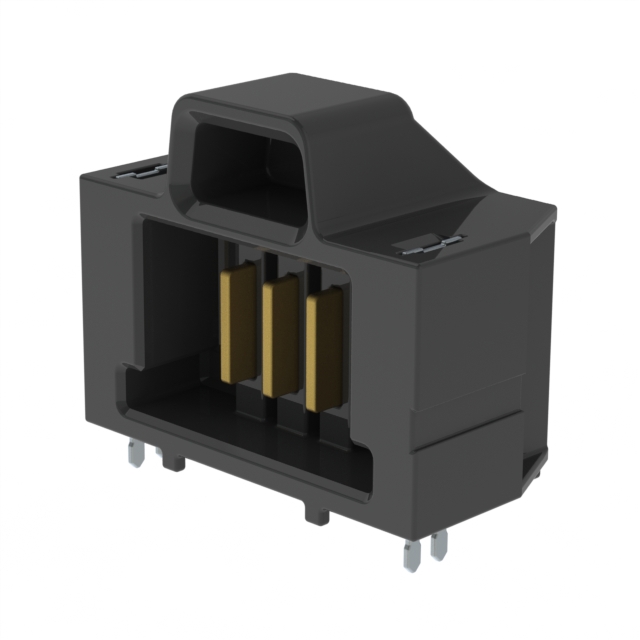

CONN HDR 3POS 2.00MM R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UMPT-03-01-L-RA-WT-P-TR

Active

Samtec Inc.

CONN HDR 3POS 2.00MM R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMPT-03-01-L-RA-WT-P-TR

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Solder Retention
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Rows	1
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

UMPT-03 Series

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Mounting Type	Termination	Contact Finish	Voltage Rating	Material - Insulation	Features	Fastening Type
Samtec Inc. UMPT-03-02.5-L-V-S-TR	1	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount	Solder	Gold	650 V	Liquid Crystal Polymer (LCP)
Samtec Inc. UMPT-03-01.5-L-V-S-W-TR	1	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount	Solder	Gold	650 V	Liquid Crystal Polymer (LCP)	Solder Retention
Samtec Inc. UMPT-03-01-S-RA-WT-TR	1	0.079 in	2 mm	Copper Alloy			30 Áin	0.76 Ám	Black	Header Male Blades	Surface Mount Right Angle	Solder	Gold		Liquid Crystal Polymer (LCP)	Solder Retention
Samtec Inc. UMPT-03-01-L-RA-WT-M-TR	1	0.079 in	2 mm	Copper Alloy			10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount Right Angle	Solder	Gold		Liquid Crystal Polymer (LCP)	Solder Retention	Latch Lock
Samtec Inc. UMPT-03-01.5-G-V-S-W-TR	1	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount	Solder	Gold	650 V	Liquid Crystal Polymer (LCP)	Pick and Place Solder Retention
Samtec Inc. UMPT-03-01-T-RA-WT-TR	1	0.079 in	2 mm	Copper Alloy					Black	Header Male Blades	Surface Mount Right Angle	Solder	Tin		Liquid Crystal Polymer (LCP)	Solder Retention
Samtec Inc. UMPT-03-12.5-L-V-S-TR	1	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount	Solder	Gold	650 V	Liquid Crystal Polymer (LCP)
Samtec Inc. UMPT-03-01-L-RA-WT-P-TR	1	0.079 in	2 mm	Copper Alloy			10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount Right Angle	Solder	Gold		Liquid Crystal Polymer (LCP)	Solder Retention	Latch Lock
Samtec Inc. UMPT-03-07.5-L-V-S-TR	1	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount	Solder	Gold	650 V	Liquid Crystal Polymer (LCP)
Samtec Inc. UMPT-03-06.5-G-V-S-W-TR	1	0.079 in	2 mm	Copper Alloy	-55 °C	125 °C	10 Áin	0.25 Ám	Black	Header Male Blades	Surface Mount	Solder	Gold	650 V	Liquid Crystal Polymer (LCP)	Pick and Place Solder Retention

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.63
		25	$ 3.28
		50	$ 3.09
	Tape & Reel (TR)	100	$ 3.09

Description

General part information

UMPT-03 Series

3 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Surface Mount, Right Angle
