1415117

Active

Phoenix Contact

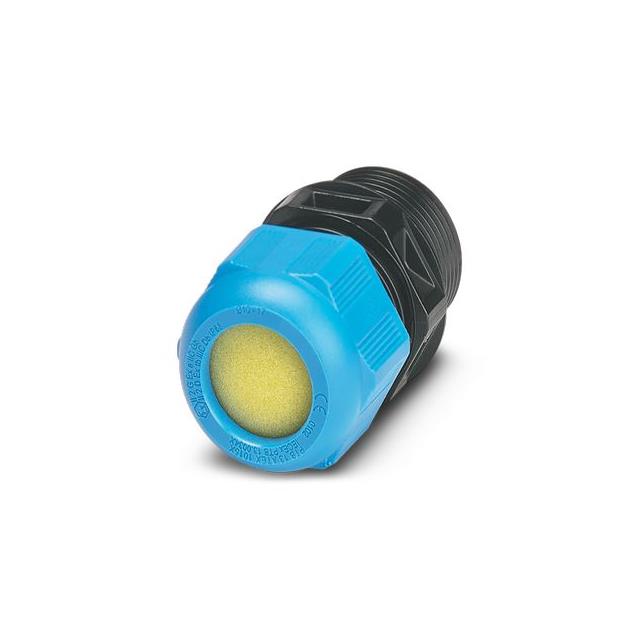

CABLE GLAND 7-13MM M20 POLYAMIDE

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 7-13MM M20 POLYAMIDE

Technical Specifications

Parameters and characteristics for this part

Specification	1415117

Color	Black, Blue
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.512 in
Outside Cable Diameter (Max) [Max] [diameter]	13 mm
Outside Cable Diameter (Min)	7 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	M20
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Length	Thread Length	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Type	Includes	Thread Size	Outside Cable Diameter (Min)
Phoenix Contact 1415125	6 mm	0.236 in	IP66/IP68	0.472 in	12 mm	Brass Nickel Plated	0.512 in	13 mm	Silver	-40 °C	75 ░C	Cable Gland	O-Ring Seal	M20
Phoenix Contact 1415117		0.276 in	IP66/IP68	0.591 in	15 mm	Polyamide (PA) Nylon	0.512 in	13 mm	Black Blue	-40 °C	75 ░C	Cable Gland	Seal	M20	7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M20 Black, Blue
