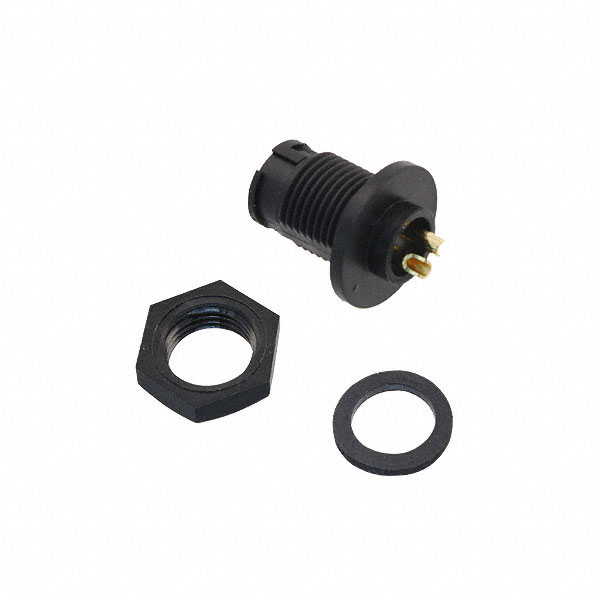

17282-2PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 2P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	17282-2PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

Part	Applications	Orientation	Fastening Type	Mounting Feature	Number of Positions	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Shielding	Voltage Rating	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Contact Material
Conxall/Switchcraft 17282-2PG-300	Data Industrial Instrumentation Medical	Keyed	Bayonet Lock	Bulkhead - Front Side Nut	2	Plastic	7.5 A	Gold	IP67 - Dust Tight Waterproof	Unshielded	600 VAC	UL94 HB	Male Pins Receptacle	85 °C	-40 °C	Black	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Male Pins Solder Cup
