CSG-UFFR-100-UFFR
ActiveTE Connectivity Linx

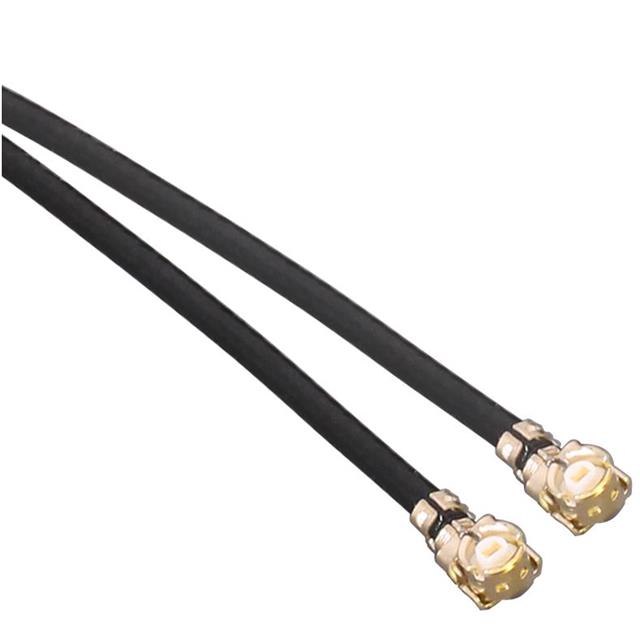

CBL ASSY U.FL PLUG-PLUG 3.940"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSG-UFFR-100-UFFR
ActiveTE Connectivity Linx
CBL ASSY U.FL PLUG-PLUG 3.940"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSG-UFFR-100-UFFR |
|---|---|
| 1st Connector | U.FL (UMCC) Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | U.FL (UMCC) Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 3.94 " |
| Length [x] | 100.08 mm |
| Operating Temperature | 200 °C |
| Overall Impedance | 50 Ohms |
| Style | U.FL (UMCC) to U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.62 | |
Description
General part information
CSG-UFFR Series
Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 1.37mm OD Coaxial Cable 3.940" (100.08mm)
