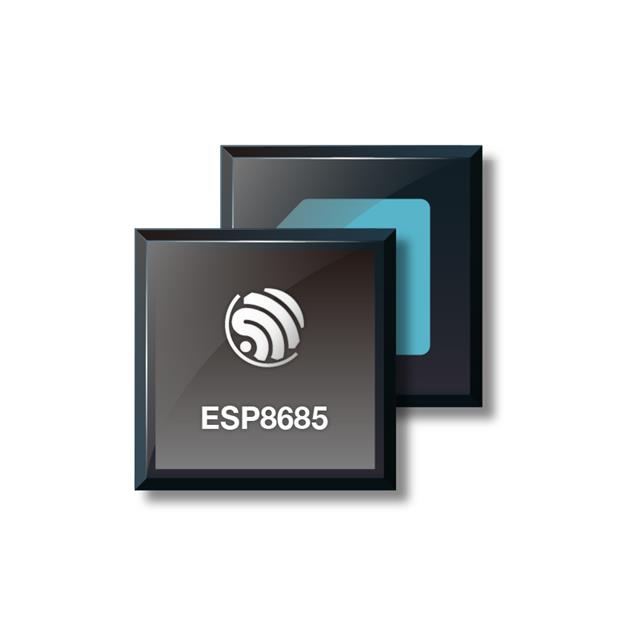

ESP8685H4

Active

Espressif Systems

IC RF TXRX+MCU BLE 28QFN

Search across all available documentation for this part.

Active

Espressif Systems

IC RF TXRX+MCU BLE 28QFN

Technical Specifications

Parameters and characteristics for this part

Part	Memory Size [custom]	Memory Size [custom]	Memory Size [custom]	Serial Interfaces	Current - Transmitting [Max]	Current - Transmitting [Min]	Sensitivity	Current - Receiving [Min]	Current - Receiving [Max]	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]	GPIO	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate (Max)	Supplier Device Package	Type	Power - Output	Frequency	RF Family/Standard	Package / Case
Espressif Systems ESP8685H4	400 kB	4 MB	384 kB	ADC GPIO I2C I2S PWM SPI UART USB	335 mA	276 mA	-98.4 dBm	84 mA	87 mA	802.11b/g/n Bluetooth v5.0	3.6 V	3 V	15	Surface Mount	105 °C	-40 °C	150 Mbps	28-QFN (4x4)	TxRx + MCU	21 dBm	2.4 GHz	Bluetooth WiFi	28-VFQFN Exposed Pad
Espressif Systems ESP8685H2	400 kB	2 MB	384 kB	ADC GPIO I2C I2S PWM SPI UART USB	335 mA	276 mA	-97 dBm	84 mA	87 mA	802.11b/g/n Bluetooth v5.0	3.6 V	3 V	15	Surface Mount	105 °C	-40 °C	150 Mbps	28-QFN (4x4)	TxRx + MCU	19 dBm	2.4 GHz	WiFi	28-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.50
	Digi-Reel®	1	$ 1.50
	Tape & Reel (TR)	5000	$ 1.50

General part information

IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n, Bluetooth v5.0 2.4GHz 28-VFQFN Exposed Pad
