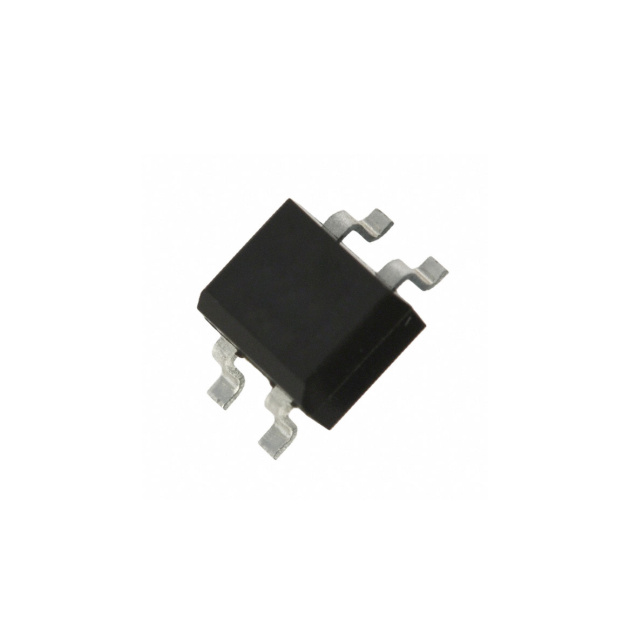

CBR1U-D020S TIN/LEAD

Active

Central Semiconductor Corp

SURFACE MOUNT-RECTIFIER-B

Search across all available documentation for this part.

Active

Central Semiconductor Corp

SURFACE MOUNT-RECTIFIER-B

Technical Specifications

Parameters and characteristics for this part

Specification	CBR1U-D020S TIN/LEAD

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SMDIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.05 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Technology	Voltage - Peak Reverse (Max) [Max]	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Mounting Type	Current - Average Rectified (Io)	Diode Type	Voltage - Forward (Vf) (Max) @ If
Central Semiconductor Corp CBR1U-D020S	Standard	200 V	4-SMD Gull Wing	4-SMDIP	150 °C	-65 °C	5 µA	Surface Mount	1 A	Single Phase	1.05 V
Central Semiconductor Corp CBR1U-D020S TIN/LEAD	Standard	200 V	4-SMD Gull Wing	4-SMDIP	150 °C	-65 °C	5 µA	Surface Mount	1 A	Single Phase	1.05 V
Central Semiconductor Corp CBR1U-D020S H	Standard	200 V	4-SMD Gull Wing	4-SMDIP	150 °C	-65 °C	5 µA	Surface Mount	1 A	Single Phase	1.05 V
Central Semiconductor Corp CBR1U-D020S TR13	Standard	200 V	4-SMD Gull Wing	4-SMDIP	150 °C	-65 °C	5 µA	Surface Mount	1 A	Single Phase	1.05 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 200 V Surface Mount 4-SMDIP
