PM5-A20B24V
ObsoleteBivar Inc.

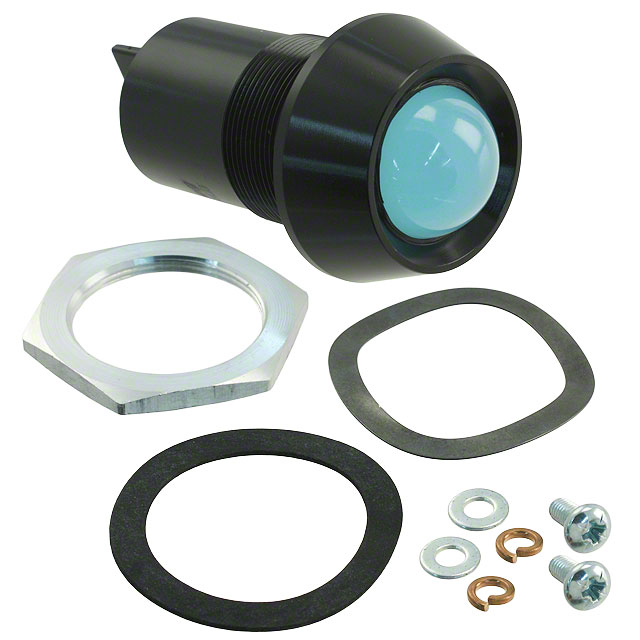

PANEL MOUNT ASSEM 25.4MM BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM5-A20B24V
ObsoleteBivar Inc.
PANEL MOUNT ASSEM 25.4MM BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM5-A20B24V |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 20 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 300 mcd |
| Panel Cutout Dimensions | 25.4 mm |
| Panel Cutout Dimensions | 1 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Type | LED |
| Viewing Angle | 160 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PM5-A20B24 Series
LED Panel Indicator Blue Diffused 160° 24V 20mA
Documents
Technical documentation and resources
