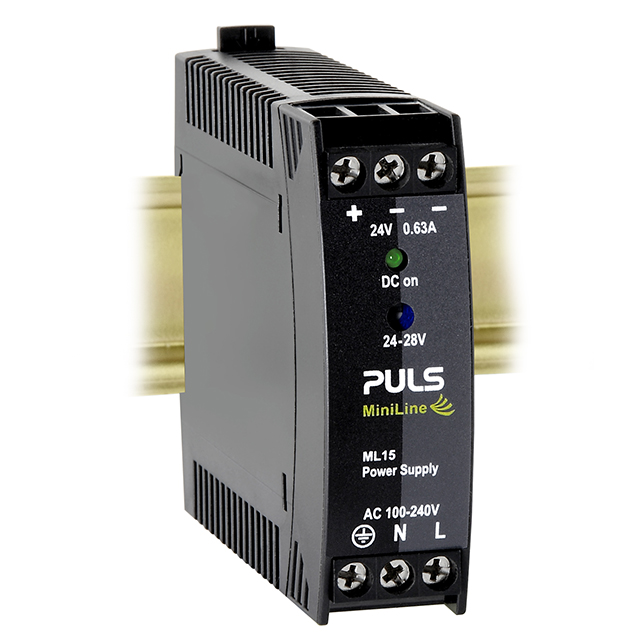

ML15.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 15W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	ML15.241

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	DNV GL, CSA, EAC, IEC, ABS, NEC, UL
Current - Output (Max) [Max]	630 mA
Efficiency	86.1 %
Features	Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	15 W
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Features	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Applications	Input Type	Approval Agency	Current - Output (Max) [Max]	Efficiency	Operating Temperature [Max]	Voltage - Output 1	Power (Watts)	Voltage - Isolation	Number of Outputs
PULS, LP ML15.051	Adjustable Output Load Sharing	85 VAC	264 VAC	ITE (Commercial)	AC	ABS CSA DNV GL EAC IEC NEC UL	3 A	77.2 %	70 °C	5 V	15 W	500 V	1
PULS, LP ML15.121	Adjustable Output Load Sharing	85 VAC	264 VAC	ITE (Commercial)	AC	ABS CSA DNV GL EAC IEC NEC UL	1.3 A	83 %	70 °C	12 V	15 W	500 V	1
PULS, LP ML15.241	Adjustable Output Load Sharing	85 VAC	264 VAC	ITE (Commercial)	AC	ABS CSA DNV GL EAC IEC NEC UL	630 mA	86.1 %	70 °C	24 V	15 W	500 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.50

General part information

AC/DC DIN RAIL SUPPLY 24V 15W

Technical documentation and resources
