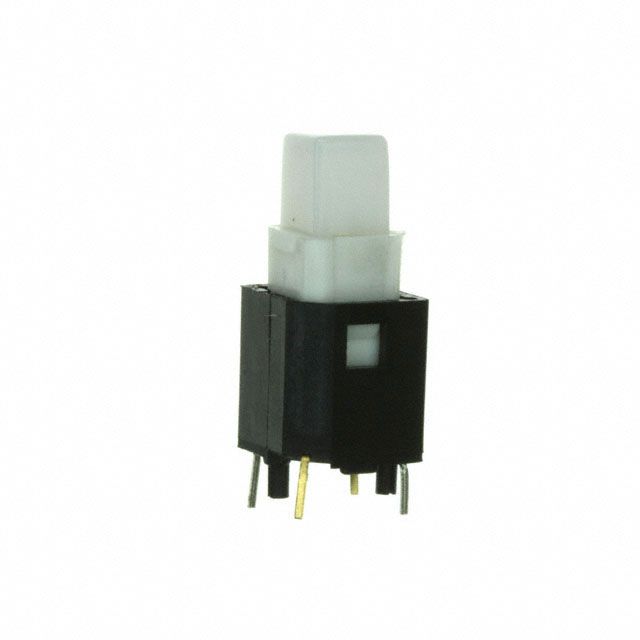

LP2S1WHTBLU-N
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPST; 0.001A/20VDC; WHITE; THT; 1.23N
Deep-Dive with AI
Search across all available documentation for this part.
LP2S1WHTBLU-N
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 2; SPST; 0.001A/20VDC; WHITE; THT; 1.23N
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LP2S1WHTBLU-N |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPST-NO |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 1 mA |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.5 VDC |
| Mechanical Life | 300000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Illuminated, Standard |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.69 | |
| 10 | $ 4.05 | |||
| 25 | $ 3.82 | |||
| 50 | $ 3.65 | |||
| 120 | $ 3.45 | |||
| 360 | $ 3.22 | |||
| 600 | $ 3.11 | |||
| 1080 | $ 3.00 | |||
Description
General part information
LP2S1 Series
Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
