09352310311

Active

HARTING Technology Group

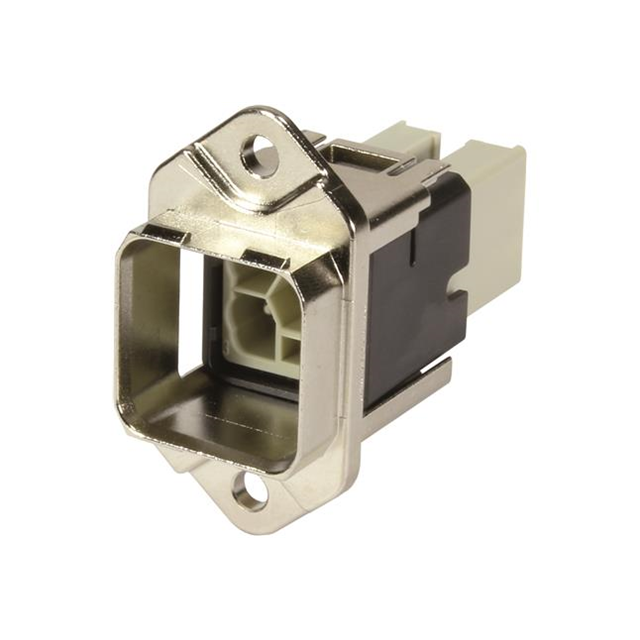

HAN PUSHPULL POWER 4/0 METAL, MALE, BULKHEAD SIDE RECTANGULAR CUTOUT, FOR CRIMP TERMINATION

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN PUSHPULL POWER 4/0 METAL, MALE, BULKHEAD SIDE RECTANGULAR CUTOUT, FOR CRIMP TERMINATION

Technical Specifications

Parameters and characteristics for this part

Part	Features	Insulation Material	Contact Type	Note	Operating Temperature [Min]	Operating Temperature [Max]	Color	Fastening Type	Contact Termination	Mounting Type
HARTING Technology Group 09352340311	Mounting Flange	Zinc Die Cast	Male Pin	Contacts Not Included	-40 °C	70 °C	Black	Push-Pull	Push In with Lock
HARTING Technology Group 09352310423	Strain Relief	Thermoplastic	Female Socket	Contacts Not Included	-40 °C	70 °C	Black	Push-Pull	Crimp	Free Hanging (In-Line)
HARTING Technology Group 09352310311		Zinc Die Cast	Male Pin	Contacts Not Included	-40 °C	70 °C		Push-Pull	Crimp	Bulkhead Panel Mount
HARTING Technology Group 09352320312		Zinc Die Cast	Male Pin	Contacts Not Included	-40 °C	70 °C		Push-Pull	Push In with Lock	Bulkhead Panel Mount
HARTING Technology Group 09352320311	Mounting Flange	Zinc Die Cast	Male Pin	Contacts Not Included	-40 °C	70 °C		Push-Pull	Push In with Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings

Technical documentation and resources
