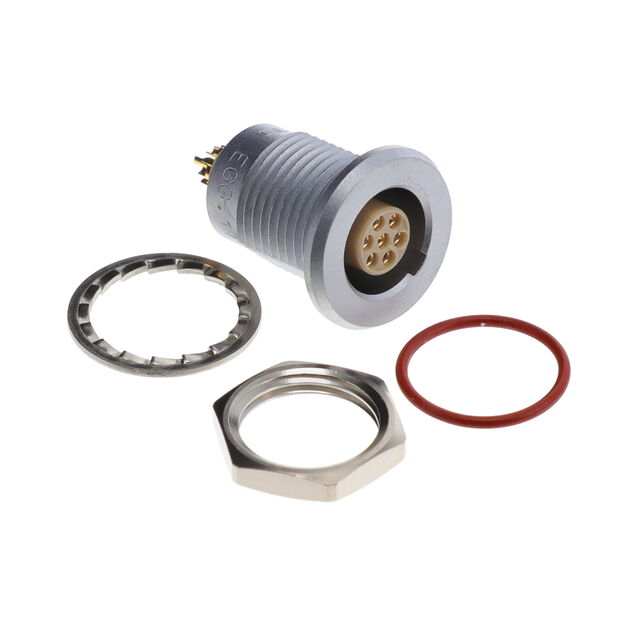

EGG.1T.307.CLL

Active

LEMO

CONN PNL MNT RCPT F SOLDER 7POS

Search across all available documentation for this part.

Active

LEMO

CONN PNL MNT RCPT F SOLDER 7POS

Technical Specifications

Parameters and characteristics for this part

Specification	EGG.1T.307.CLL

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Bronze
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	307
Shielding	Shielded

Part	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Orientation	Fastening Type	Shell Finish	Shielding	Color	Insert Material	Connector Type	Number of Positions	Ingress Protection	Primary Material	Mounting Feature	Current Rating (Amps)	Shell Material	Shell Size - Insert	Number of Positions
LEMO EGG.1T.316.CLL	Gold	200 °C	-55 °C	Bronze	1.5 Ám	59 Áin	UL94 V-0	G	Push-Pull	Chrome	Shielded	Silver	Polyetheretherketone (PEEK)	Receptacle Female Sockets	16	IP66/IP68	Metal	Bulkhead - Rear Side Nut	1.5 A	Brass	316
LEMO EGG.1T.307.CLL	Gold	250 °C	-55 °C	Bronze			UL94 V-0	G	Push-Pull	Chrome	Shielded	Silver	Polyetheretherketone (PEEK)	Receptacle Female Sockets		IP68 - Dust Tight Waterproof	Metal	Bulkhead - Rear Side Nut	7 A	Brass	307	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Female Sockets Solder Cup
