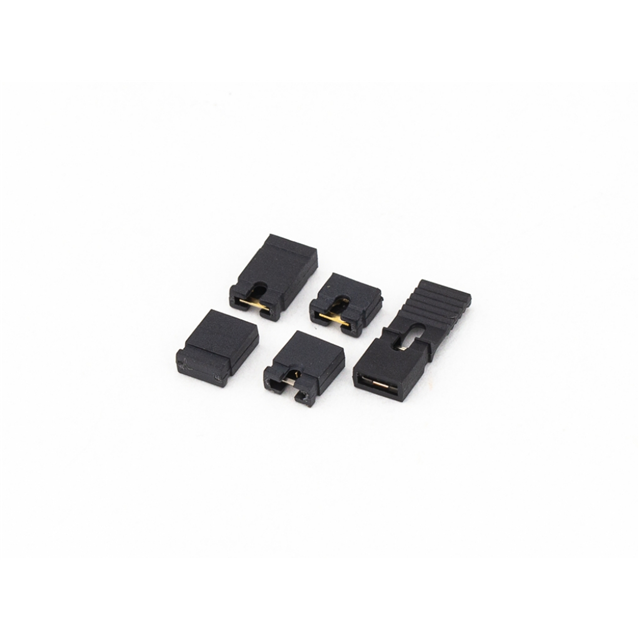

2006-2X04B

Active

Oupiin

MINI JUMPERS, 2.54MM PITCH, BLAC

Search across all available documentation for this part.

Active

Oupiin

MINI JUMPERS, 2.54MM PITCH, BLAC

Technical Specifications

Parameters and characteristics for this part

Specification	2006-2X04B

Color	Black
Contact Finish	Gold
Gender	Female Sockets
Height [z]	6 mm
Height [z]	0.236 "
Housing Material	Polyester Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid)	4
Number of Positions or Pins (Grid) [custom]	1 x 4
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top

Part	Height [z]	Height [z]	Color	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions or Pins (Grid)	Type	Gender	Material Flammability Rating	Housing Material	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)
Oupiin 2006-2X05B	6 mm	0.236 "	Black	2.54 mm	0.1 in	Gold	5	Open Top	Female Sockets	UL94 V-0	Polyester Thermoplastic Glass Filled
Oupiin 2006-DRB	8 mm	0.315 in	Red	2.54 mm	0.1 in	Gold		Open Top	Female Sockets	UL94 V-0	Polybutylene Terephthalate (PBT)	1 x 2	2	3 A
Oupiin 2006-CBB	4.5 mm	0.177 in	Black	2.54 mm	0.1 in	Gold		Open Top	Female Sockets	UL94 V-0	Polybutylene Terephthalate (PBT)	1 x 2	2	3 A
Oupiin 2006-WERB	13.5 mm	0.531 "	Red	2.54 mm	0.1 in	Gold		Grip Open Top	Female Sockets	UL94 V-0		1 x 2	2	3 A
Oupiin 2006-BUB	6 mm	0.236 "	Blue	2.54 mm	0.1 in	Gold		Open Top	Female Sockets	UL94 V-0	Polybutylene Terephthalate (PBT)	1 x 2	2	3 A
Oupiin 2006-2X04B	6 mm	0.236 "	Black	2.54 mm	0.1 in	Gold	4	Open Top	Female Sockets	UL94 V-0	Polyester Thermoplastic Glass Filled	1 x 4
Oupiin 2006-2X02B	6 mm	0.236 "	Black	2.54 mm	0.1 in	Gold		Open Top	Female Sockets	UL94 V-0	Polyester Thermoplastic Glass Filled	1 x 2	2
Oupiin 2006-ARB	6.5 mm	0.256 "	Red	2.54 mm	0.1 in	Gold		Open Top	Female Sockets	UL94 V-0	Polybutylene Terephthalate (PBT)	1 x 2	2	3 A
Oupiin 2006-BBB	6 mm	0.236 "	Black	2.54 mm	0.1 in	Gold		Open Top	Female Sockets	UL94 V-0	Polybutylene Terephthalate (PBT)	1 x 2	2	3 A
Oupiin 2006-2X03B	6 mm	0.236 "	Black	2.54 mm	0.1 in	Gold	3	Open Top	Female Sockets	UL94 V-0	Polyester Thermoplastic Glass Filled

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.33

General part information

4 (1 x 4) Position Shunt Connector Black Open Top 0.100" (2.54mm) Gold
