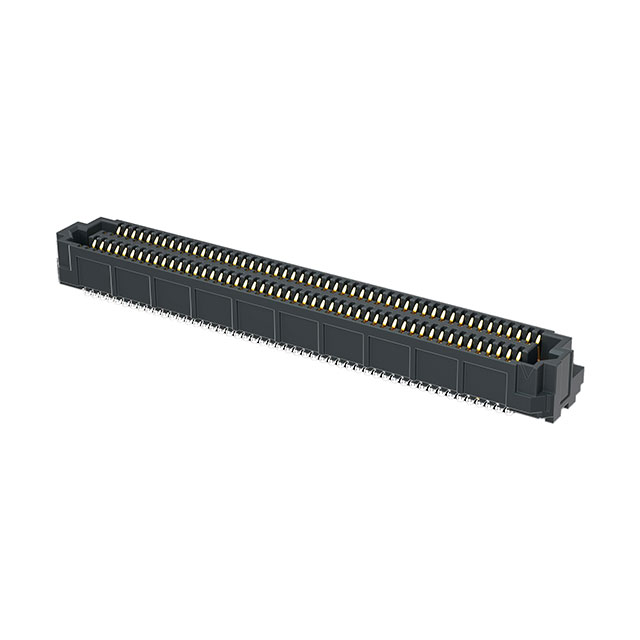

ADF6-50-03.5-L-4-2-A-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM ACCELERATE HD HIGH-DENSITY 4-ROW SOCKET

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM ACCELERATE HD HIGH-DENSITY 4-ROW SOCKET

Technical Specifications

Parameters and characteristics for this part

Board to Board & Mezzanine Connectors 0.635 mm AcceleRate HD High-Density 4-Row Socket

Part	Contact Finish	Mated Stacking Heights	Features	Connector Type	Number of Positions	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type
Samtec Inc. ADF6-10-03.5-L-4-2-A-TR	Gold	5 mm 7 mm 10 mm 12 mm	Board Guide	High Density Array Female	40	3.72 mm	0.147 in	0.64 mm	0.025 in	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. ADF6-30-03.5-L-4-2-A-TR	Gold	5 mm 7 mm 10 mm 12 mm	Board Guide	High Density Array Female	120	3.72 mm	0.147 in	0.64 mm	0.025 in	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. ADF6-50-03.5-L-4-2-A-TR	Gold	5 mm 7 mm 10 mm 12 mm	Board Guide	High Density Array Female		3.72 mm	0.147 in	0.64 mm	0.025 in	10 Áin	0.25 Ám	Surface Mount
Samtec Inc. ADF6-40-03.5-L-4-2-A-TR	Gold	5 mm 7 mm 10 mm 12 mm	Board Guide	High Density Array Female	160	3.72 mm	0.147 in	0.64 mm	0.025 in	10 Áin	0.25 Ám	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board to Board & Mezzanine Connectors 0.635 mm AcceleRate HD High-Density 4-Row Socket
