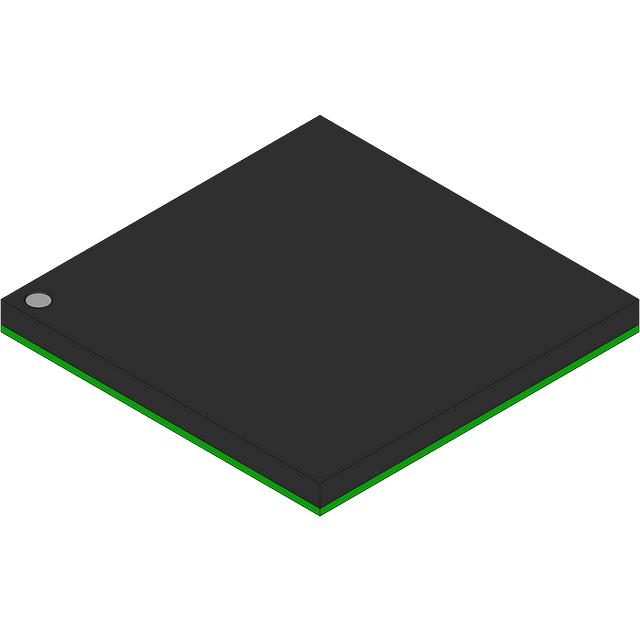

DS26524GA4

Obsolete

Analog Devices Inc./Maxim Integrated

DS26524 QUAD T1/E1/J1 TRANSCVR

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

DS26524 QUAD T1/E1/J1 TRANSCVR

Technical Specifications

Parameters and characteristics for this part

Specification	DS26524GA4

Current - Supply	450 mA
Function	Framer, Line Interface Unit (LIU)
Interface	J1, T1, E1
Mounting Type	Surface Mount
Number of Circuits	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	CSPBGA, 256-LBGA
Supplier Device Package	256-CSBGA (17x17)
Voltage - Supply [Max]	3.465 V
Voltage - Supply [Min]	3.135 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Function	Number of Circuits	Current - Supply	Supplier Device Package	Package / Case
Analog Devices Inc./Maxim Integrated DS26524GN+	3.465 V	3.135 V	Surface Mount	LIU	85 °C	-40 °C	Line Interface Unit (LIU)	4	260 mA	256-CSBGA (17x17)	256-LBGA CSBGA
Analog Devices Inc./Maxim Integrated DS26524GA5	3.465 V	3.135 V	Surface Mount	LIU			Line Interface Unit (LIU)	4	260 mA	256-CSBGA (17x17)	256-LBGA CSBGA
Analog Devices Inc./Maxim Integrated DS26524GA4	3.465 V	3.135 V	Surface Mount	E1 J1 T1	70 °C	0 °C	Framer Line Interface Unit (LIU)	4	450 mA	256-CSBGA (17x17)	256-LBGA CSPBGA
Analog Devices Inc./Maxim Integrated DS26524G+	3.465 V	3.135 V	Surface Mount	LIU	70 °C	0 °C	Line Interface Unit (LIU)	4	260 mA	256-CSBGA (17x17)	256-LBGA CSBGA
Analog Devices Inc./Maxim Integrated DS26524GN	3.465 V	3.135 V	Surface Mount	LIU	85 °C	-40 °C	Line Interface Unit (LIU)	4	260 mA	256-CSBGA (17x17)	256-LBGA CSBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	7	$ 46.79

General part information

Telecom IC Framer, Line Interface Unit (LIU) 256-CSBGA (17x17)

Technical documentation and resources

No documents available
