OSTOQ091251

Active

On Shore Technology Inc.

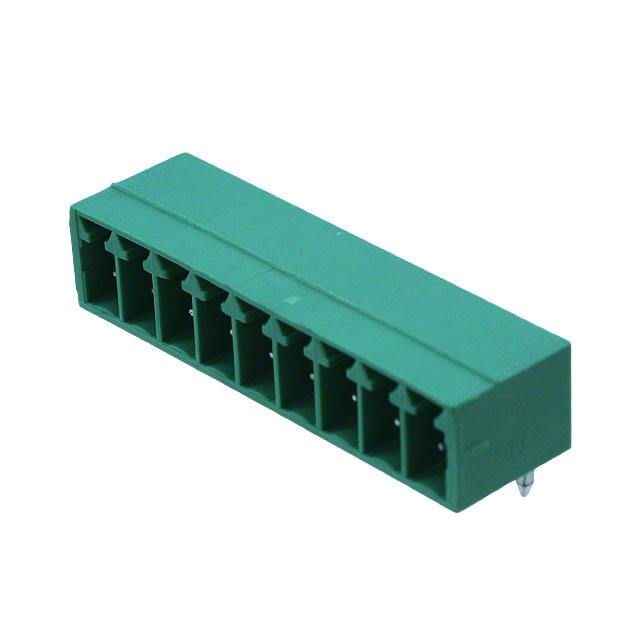

TERM BLOCK HDR 9POS 90DEG 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OSTOQ091251

Active

On Shore Technology Inc.

TERM BLOCK HDR 9POS 90DEG 3.5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OSTOQ091251

Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Header Orientation	90°, Right Angle
Housing Material	Thermoplastic
Insulation Height	3.5 mm
Insulation Height	0.138 in
Mounting Type	Solder
Number of Levels	1
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	9
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

OSTOQ09 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Housing Material	Contact Mating Finish	Header Orientation	Features	Pitch [x]	Pitch [x]	Mounting Type	Voltage - UL	Number of Levels	Material Flammability Rating	Number of Positions	Contact Tail Length	Contact Tail Length	Type	Positions Per Level	Insulation Height	Insulation Height	Termination Style
On Shore Technology Inc. OSTOQ097551	-30 ░C	105 ░C	0.157 in	4 mm	Brass	Thermoplastic	Tin	90° Right Angle	Mating Flange	5 mm	0.197 in	Solder	300 V	1	UL94 V-0	9	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	9
On Shore Technology Inc. OSTOQ093550	-30 ░C	105 ░C			Brass	Thermoplastic	Tin	Vertical	Mating Flange	3.81 mm	0.15 in	Solder	300 V	1	UL94 V-0	9	0.138 in	3.5 mm	Header Male Pins Shrouded (4 Side)	9	3.5 mm	0.138 in
On Shore Technology Inc. OSTOQ090550	-30 ░C	105 ░C	0.157 in	4 mm	Brass	Thermoplastic	Tin	Vertical	Mating Flange	7.62 mm	0.3 in	Solder	300 V	1	UL94 V-0	9	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	9
On Shore Technology Inc. OSTOQ09A050	-30 ░C	105 ░C	0.157 in	4 mm	Brass	Thermoplastic	Tin	Vertical		7.5 mm	0.295 in	Solder	300 V	1		9	0.157 in	4 mm	Header Male Pins Shrouded (2 Side)	9
On Shore Technology Inc. OSTOQ091251	-30 ░C	105 ░C			Brass	Thermoplastic	Tin	90° Right Angle		3.5 mm	0.138 in	Solder	300 V	1		9	0.138 in	3.5 mm	Header Male Pins Shrouded (4 Side)	9	3.5 mm	0.138 in
On Shore Technology Inc. OSTOQ09A150	-30 ░C	105 ░C	0.157 in	4 mm	Brass	Thermoplastic	Tin	Vertical		7.5 mm	0.295 in	Solder	300 V	1		9	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	9
On Shore Technology Inc. OSTOQ091550	-30 ░C	105 ░C			Brass	Thermoplastic	Tin	Vertical	Mating Flange	3.5 mm	0.138 in	Solder	300 V	1	UL94 V-0	9	0.138 in	3.5 mm	Header Male Pins Shrouded (4 Side)	9	3.5 mm	0.138 in
On Shore Technology Inc. OSTOQ09A051	-30 ░C	105 ░C	0.157 in	4 mm	Brass	Thermoplastic	Tin	90° Right Angle		7.5 mm	0.295 in	Solder	300 V	1		9	0.157 in	4 mm	Header Male Pins Shrouded (2 Side)	9
On Shore Technology Inc. OSTOQ09A151	-30 ░C	105 ░C	0.157 in	4 mm	Brass	Thermoplastic	Tin	90° Right Angle		7.5 mm	0.295 in	Through Hole	300 V	1		9	0.157 in	4 mm	Header Male Pins Shrouded (4 Side)	9			Solder
On Shore Technology Inc. OSTOQ091250	-30 ░C	105 ░C			Brass	Thermoplastic	Tin	Vertical		3.5 mm	0.138 in	Solder	300 V	1		9	0.138 in	3.5 mm	Header Male Pins Shrouded (4 Side)	9	3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		10	$ 1.15
		25	$ 0.99
		50	$ 0.90
		100	$ 0.84
		250	$ 0.77
		500	$ 0.74
		1000	$ 0.71
		5000	$ 0.68

Description

General part information

OSTOQ09 Series

9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Solder
