1422037-2

Active

TE Connectivity Potter & Brumfield Relays

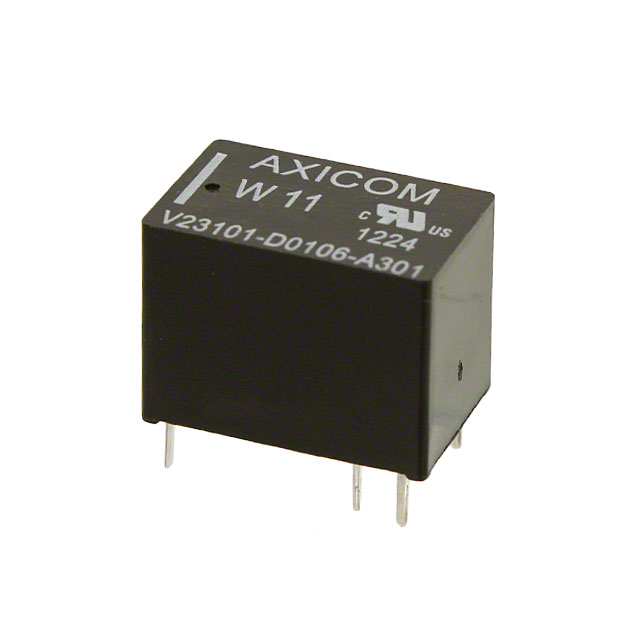

RELAY GEN PURPOSE SPDT 3A 12V

Deep-Dive with AI

Search across all available documentation for this part.

1422037-2

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 3A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1422037-2

Coil Current	17.2 mA
Coil Resistance	700 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	3 A
Load - Max Switching	360 W, 375 VA
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	7 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	5 ms
Switching Voltage	125 VAC, 120 VDC
Termination Style	PC Pin

V23101 Series

Part	Switching Voltage	Coil Voltage	Coil Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Load - Max Switching	Contact Material	Release Time	Mounting Type	Operate Time	Contact Rating (Current)	Must Operate Voltage	Coil Current	Relay Type	Contact Form	Coil Resistance
TE Connectivity Potter & Brumfield Relays V23101D 1A201	120 VDC 125 VAC	1.5 VDC	Non Latching	PC Pin	85 °C	-40 °C	0.15 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	1.3 VDC	250 mA	General Purpose	SPDT (1 Form C)
TE Connectivity Potter & Brumfield Relays V23101D 4B201	120 VDC 125 VAC		Non Latching	PC Pin	85 °C	-40 °C	0.6 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	4.2 VDC	75 mA	General Purpose	SPDT (1 Form C)	80 Ohms
TE Connectivity Potter & Brumfield Relays V23101D 3B301	120 VDC 125 VAC	5 VDC	Non Latching	PC Pin	85 °C	-40 °C	0.5 VDC	360 W 375 VA	Silver Nickel (AgNi)	5 ms	Through Hole	7 ms	3 A	3.5 VDC	89.2 mA	General Purpose	SPDT (1 Form C)	56 Ohms
TE Connectivity Potter & Brumfield Relays V23101D1106B201	120 VDC 125 VAC	12 VDC	Non Latching	PC Pin	85 °C	-40 °C	1.2 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	9 VDC	17.2 mA	General Purpose	SPDT (1 Form C)	700 Ohms
TE Connectivity Potter & Brumfield Relays V23101D 6A201	120 VDC 125 VAC	12 VDC	Non Latching	PC Pin	85 °C	-40 °C	1.2 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	8.4 VDC	37.5 mA	General Purpose	SPDT (1 Form C)	320 Ohms
TE Connectivity Potter & Brumfield Relays V23101D1006B201	120 VDC 125 VAC	12 VDC	Non Latching	PC Pin	85 °C	-40 °C	1.2 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	8.4 VDC	37.5 mA	General Purpose	SPDT (1 Form C)	320 Ohms
TE Connectivity Potter & Brumfield Relays V23101D 6B201	120 VDC 125 VAC	12 VDC	Non Latching	PC Pin	85 °C	-40 °C	1.2 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	8.4 VDC	37.5 mA	General Purpose	SPDT (1 Form C)	320 Ohms
TE Connectivity Potter & Brumfield Relays V23101D 103B201	120 VDC 125 VAC	5 VDC	Non Latching	PC Pin	85 °C	-40 °C	0.5 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	3.8 VDC	41.6 mA	General Purpose	SPDT (1 Form C)	120 Ohms
TE Connectivity Potter & Brumfield Relays 1422037-2	120 VDC 125 VAC	12 VDC	Non Latching	PC Pin	85 °C	-40 °C	1.2 VDC	360 W 375 VA	Silver Nickel (AgNi)	5 ms	Through Hole	7 ms	3 A	9 VDC	17.2 mA	General Purpose	SPDT (1 Form C)	700 Ohms
TE Connectivity Potter & Brumfield Relays V23101D 104A201	120 VDC 125 VAC		Non Latching	PC Pin	85 °C	-40 °C	0.6 VDC	30 W 62.5 VA	Gold (Au) Silver Palladium (AgPd)	5 ms	Through Hole	7 ms	1.25 A	4.5 VDC	33.3 mA	General Purpose	SPDT (1 Form C)	180 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.07
		10	$ 5.69
		25	$ 5.06
		50	$ 4.80
		100	$ 4.55
		250	$ 4.45
		500	$ 4.77
		1000	$ 4.61

Description

General part information

V23101 Series

General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
