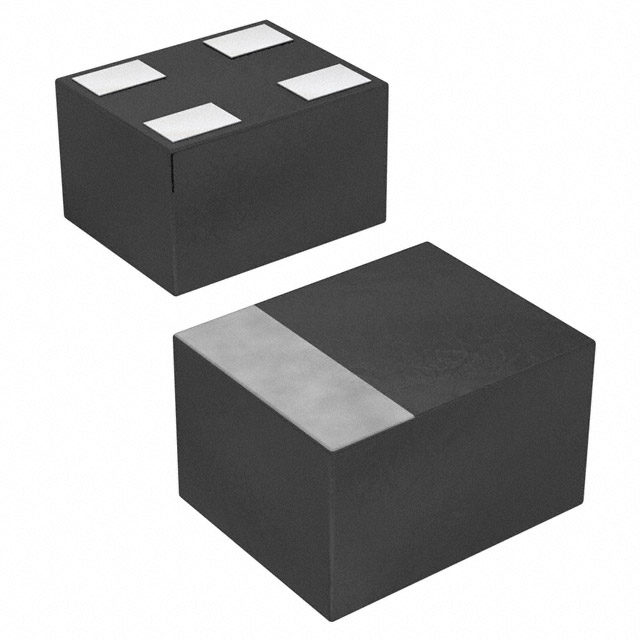

SS1003EJ-TR

Obsolete

ON Semiconductor

DIODE ARR SCHOT 30V 1A 4ECSP1608

Search across all available documentation for this part.

Obsolete

ON Semiconductor

DIODE ARR SCHOT 30V 1A 4ECSP1608

Technical Specifications

Parameters and characteristics for this part

Specification	SS1003EJ-TR

Current - Average Rectified (Io) (per Diode)	1 A
Current - Reverse Leakage @ Vr	360 µA
Diode Configuration	2 Independent
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	4-UFDFN
Reverse Recovery Time (trr)	10 ns
Speed	200 mA, 500 ns
Supplier Device Package	4-ECSP1608
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	450 mV

Part	Current - Average Rectified (Io) (per Diode)	Mounting Type	Technology	Diode Configuration	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Voltage - Forward (Vf) (Max) @ If	Package / Case	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]
ON Semiconductor SS1003EJ-TR	1 A	Surface Mount	Schottky	2 Independent	360 µA	10 ns	450 mV	4-UFDFN	4-ECSP1608	30 V	200 mA 500 ns	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3806	$ 0.08

General part information

Diode Array 2 Independent 30 V 1A Surface Mount 4-UFDFN
