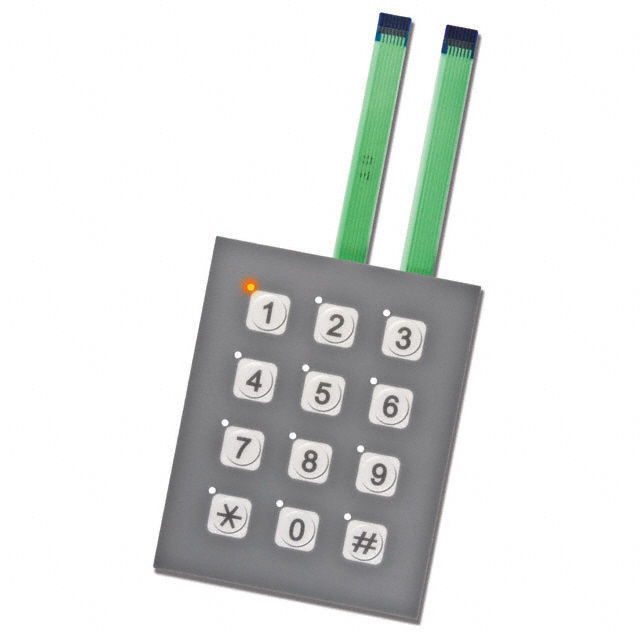

FMBP12BF

Active

NKK Switches

KEYPAD, 3 X 4, MATRIX, 20 MA, 24 V

Search across all available documentation for this part.

Active

NKK Switches

KEYPAD, 3 X 4, MATRIX, 20 MA, 24 V

Technical Specifications

Parameters and characteristics for this part

Specification	FMBP12BF

Contact Rating @ Voltage	0.02 A, 24 VDC
Illumination	Illuminated - Amber
Illumination Voltage (Nominal)	2.1 VDC
Key Color	White
Key Type	Polyester Overlay
Legend	Telephone Format
Legend Type	Fixed
Matrix (Columns x Rows) [custom]	4
Matrix (Columns x Rows) [custom]	3
Mounting Type	Panel Mount, Front
Number of Keys	12
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-15 °C
Operational Life	1000000 Cycles
Output Type	1.81 mOhm
Switch Type	Membrane (Snap Dome)
Termination Style	Cable with Connector

Part	Output Type	Mounting Type	Key Type	Operational Life	Illumination	Termination Style	Number of Keys	Switch Type	Legend Type	Key Color	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]
NKK Switches FMBP12BF	1.81 mOhm	Panel Mount Front	Polyester Overlay	1000000 Cycles	Illuminated - Amber	Cable with Connector	12	Membrane (Snap Dome)	Fixed	White	Telephone Format	-15 °C	50 °C	2.1 VDC	0.02 A 24 VDC	4	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 12 Polyester Overlay Keys Membrane (Snap Dome) Contacts Matrix Output Illuminated - Amber 0.02A @ 24VDC
