SKY13489-001
ActiveSkyworks Solutions Inc.

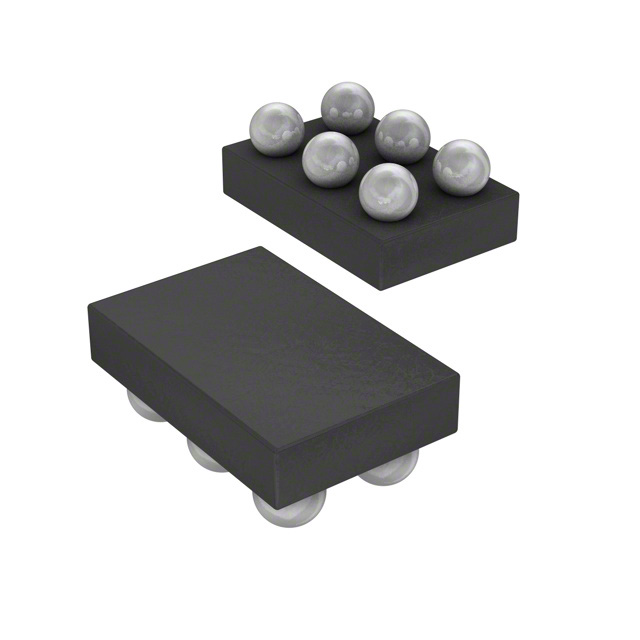

RF SWITCH SPDT 700MHZ TO 2.7GHZ 20DB 6-PIN WLCSP T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKY13489-001
ActiveSkyworks Solutions Inc.
RF SWITCH SPDT 700MHZ TO 2.7GHZ 20DB 6-PIN WLCSP T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13489-001 |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 2.7 GHz |
| Frequency Range [Min] | 700 MHz |
| Insertion Loss | 0.2 dB |
| Isolation | 32 dB |
| Mounting Type | Surface Mount |
| P1dB | 39 dBm |
| Package / Case | WLCSP, 6-XFBGA |
| RF Type | GSM, LTE, W-CDMA |
| Supplier Device Package | 6-WLCSP (1.14x0.74) |
| Test Frequency | 2 GHz, 2.7 GHz |
| Topology | Reflective |
| Voltage - Supply | 4.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 1.05 | |||
| 25 | $ 1.00 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.50 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 1.05 | |||
| 25 | $ 1.00 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.53 | |||
| 2500 | $ 0.50 | |||
| Tape & Reel (TR) | 5000 | $ 0.47 | ||
| 10000 | $ 0.46 | |||
Description
General part information
SKY13489 Series
RF Switch IC GSM, LTE, W-CDMA SPDT 2.7 GHz 6-WLCSP (1.14x0.74)
