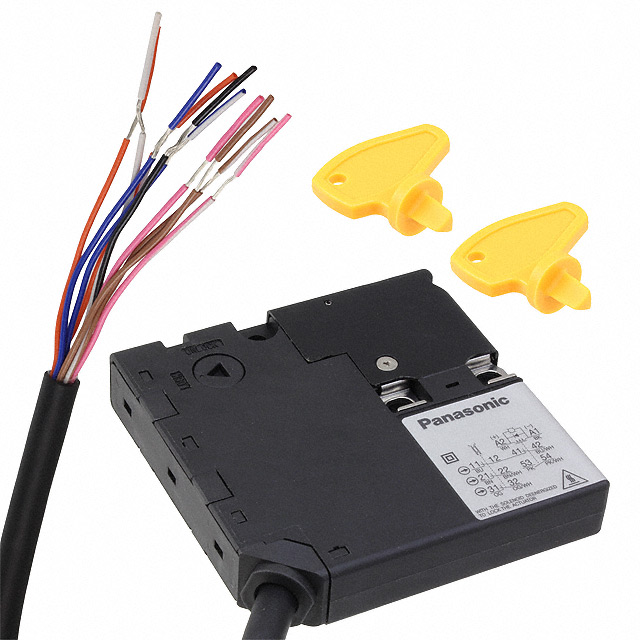

SG-B1-SB-G5
ActivePanasonic Industrial Automation Sales
INTERLOCK SOLENOID LOCKING DPST
Deep-Dive with AI
Search across all available documentation for this part.
SG-B1-SB-G5
ActivePanasonic Industrial Automation Sales
INTERLOCK SOLENOID LOCKING DPST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-B1-SB-G5 |
|---|---|
| Actuator Type | Panel Disconnect |
| Approval Agency | CE, TUV, cULus |
| Circuit | DPST-NC |
| Current Rating (Amps) | 2 A |
| Features | Manual Override |
| Holding Force | 51 kgf |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Cable Leads |
| Type | Solenoid Locking |
| Voltage - Supply | 24 VDC |
| Voltage Rating | 125 VAC, 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 390.00 | |
| 10 | $ 354.55 | |||
Description
General part information
SG-B1-S Series
INTERLOCK SOLENOID LOCKING DPST
Documents
Technical documentation and resources
No documents available
