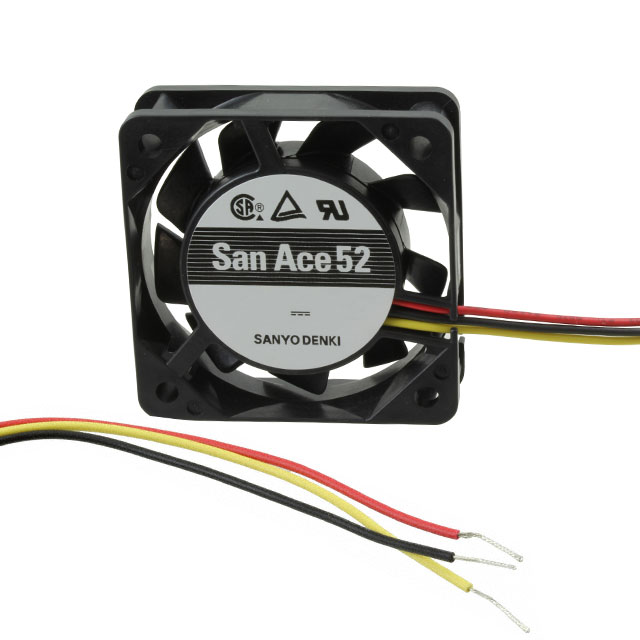

109P0512H7D01

Active

Sanyo Denki America Inc.

FAN AXIAL 52X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Rotor Balancing +1

109P0512H7D01

Active

Sanyo Denki America Inc.

FAN AXIAL 52X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0512H7D01

Air Flow	0.252 mł/min
Air Flow	9 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Material - Blade	Plastic
Material - Frame	Plastic
Noise	27 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.2 W
RPM	4600 RPM
Size / Dimension [x]	52 mm
Size / Dimension [z]	52 mm
Static Pressure	31.8 Pa
Static Pressure	0.128 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	55.34 g
Weight	0.122 lb
Width [x]	15 mm

109P0512 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Termination	Static Pressure	Static Pressure	Width [x]	Bearing Type	Noise	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current Rating (Amps)	Material - Blade	Material - Frame	Weight	Weight	Features	Lifetime @ Temp.
Sanyo Denki America Inc. 109P0512H702	52 mm	52 mm	0.252 mł/min	9 CFM	1.2 W	12 VDC	7 V	13.8 VDC	Tubeaxial	2 Wire Leads	31.8 Pa	0.128 in H2O	15 mm	Ball	27 dB(A)	4600 RPM	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	100 mA	Plastic	Plastic	55.34 g	0.122 lb
Sanyo Denki America Inc. 109P0512H7D01	52 mm	52 mm	0.252 mł/min	9 CFM	1.2 W	12 VDC	7 V	13.8 VDC	Tubeaxial	3 Wire Leads	31.8 Pa	0.128 in H2O	15 mm	Ball	27 dB(A)	4600 RPM	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	100 mA	Plastic	Plastic	55.34 g	0.122 lb	Locked Rotor Sensor
Sanyo Denki America Inc. 109P0512H701	52 mm	52 mm	0.252 mł/min	9 CFM	1.2 W	12 VDC	7 V	13.8 VDC	Tubeaxial	3 Wire Leads	31.8 Pa	0.128 in H2O	15 mm	Ball	27 dB(A)	4600 RPM	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	100 mA	Plastic	Plastic	55.34 g	0.122 lb	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 109P0512M7D01	52 mm	52 mm	0.006 m³/min	0.205 CFM	840 mW	12 VDC	7 V	13.8 VDC	Tubeaxial	3 Wire Leads	21.5 Pa	0.086 in H2O	15 mm	Ball	22 dB(A)	3700 RPM	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	70 mA	Plastic	Plastic	55.34 g	0.122 lb	Locked Rotor Sensor
Sanyo Denki America Inc. 109P0512A7D01	52 mm	52 mm	0.37 m³/min	13.2 CFM	2.52 W	12 VDC	10.2 VDC	13.8 VDC	Tubeaxial	3 Wire Leads	69.7 Pa	0.28 in H2O	15 mm	Ball	36 dB	6800 RPM	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	0.21 A	Plastic	Plastic	55.34 g	0.122 lb	Locked Rotor Sensor	40000 Hrs
Sanyo Denki America Inc. 109P0512M702	52 mm	52 mm	0.006 m³/min	0.205 CFM	840 mW	12 VDC	7 V	13.8 VDC	Tubeaxial	2 Wire Leads	21.5 Pa	0.086 in H2O	15 mm	Ball	22 dB(A)	3700 RPM	-20 °C	70 °C	-20 C	70 °C	CSA TUV UL	70 mA	Plastic	Plastic	55.34 g	0.122 lb

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 9.69

Description

General part information

109P0512 Series

Fan Tubeaxial 12VDC Square - 52mm L x 52mm H Ball 9.0 CFM (0.252mł/min) 3 Wire Leads
