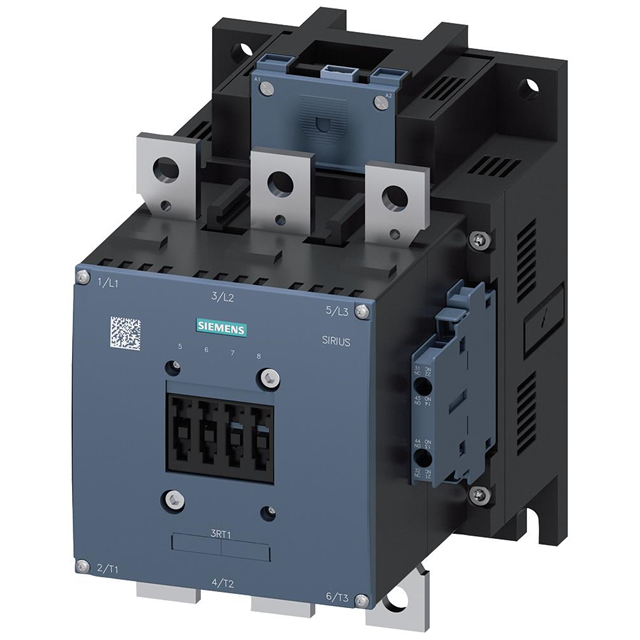

3RT14666NP36
ActiveSiemens
CONTACTOR RES S10 400A 200-277VU
Deep-Dive with AI
Search across all available documentation for this part.
3RT14666NP36
ActiveSiemens
CONTACTOR RES S10 400A 200-277VU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RT14666NP36 |
|---|---|
| Coil Power | 580 W |
| Coil Voltage [Max] | 277 VAC |
| Coil Voltage [Min] | 200 VAC/DC |
| Contact Form | 3PST-NO (3 Form A) |
| Contact Rating (Current) | 400 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operate Time | 80 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 100 ms |
| Switching Voltage | 1000 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1939.35 | |
Description
General part information
3RT1466 Series
CONTACTOR RES S10 400A 200-277VU
