140-515-417-060

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 15 SU

Search across all available documentation for this part.

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 15 SU

Technical Specifications

Parameters and characteristics for this part

Specification	140-515-417-060

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	15
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

Part	Insulation Material	Connector Type	Mounting Type	Shrouding	Insulation Color	Features	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Insulation Height [custom]	Insulation Height [custom]	Voltage Rating	Number of Positions	Contact Finish - Post	Contact Shape	Fastening Type	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows	Style	Number of Positions Loaded	Material Flammability Rating	Contact Type	Color	Contact Termination	Note	Pitch [x]	Pitch [x]
EDAC Inc. 140-515-417-060	Nylon 9T Polyamide (PA9T)	Header	Surface Mount Right Angle	Shrouded - 4 Wall	Natural	Solder Retention	2 A	-25 °C	85 °C	Solder	5.51 mm	0.217 in	100 VAC	15	Tin	Square	Detent Lock	Brass	0.079 in	2 mm	1	Board to Cable/Wire	All	UL94 V-0	Male Pin
EDAC Inc. 140-515-417-011	Liquid Crystal Polymer (LCP)	Header	Surface Mount	Shrouded - 4 Wall	Natural	Solder Retention	2 A	-40 °C	105 ░C	Solder	5.51 mm	0.217 in	100 VAC	15	Tin	Square	Detent Lock	Brass	0.079 in	2 mm	1	Board to Cable/Wire	All	UL94 V-0	Male Pin
EDAC Inc. 140-515-210-011	Polyamide (PA66) Nylon 6/6	Receptacle	Free Hanging (In-Line)			Polarizing Key		-25 °C	85 °C					15			Detent Lock				1				Female Socket	Natural	Crimp	Contacts Not Included	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.60

General part information

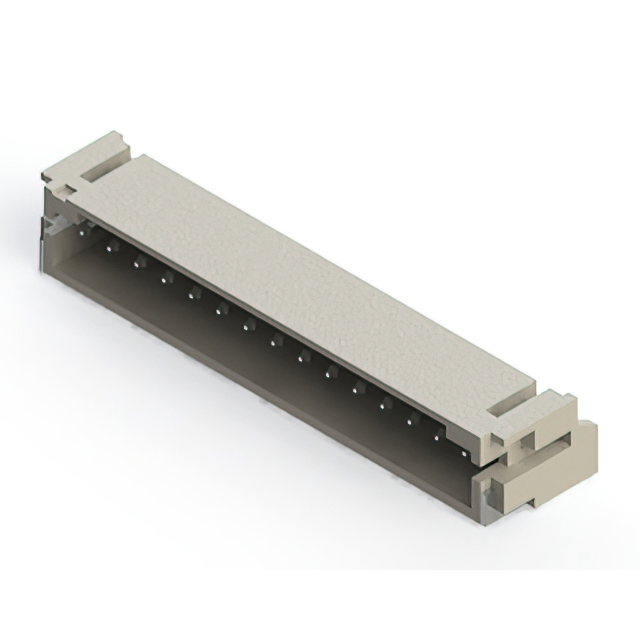

Connector Header Surface Mount, Right Angle 15 position 0.079" (2.00mm)

Technical documentation and resources
