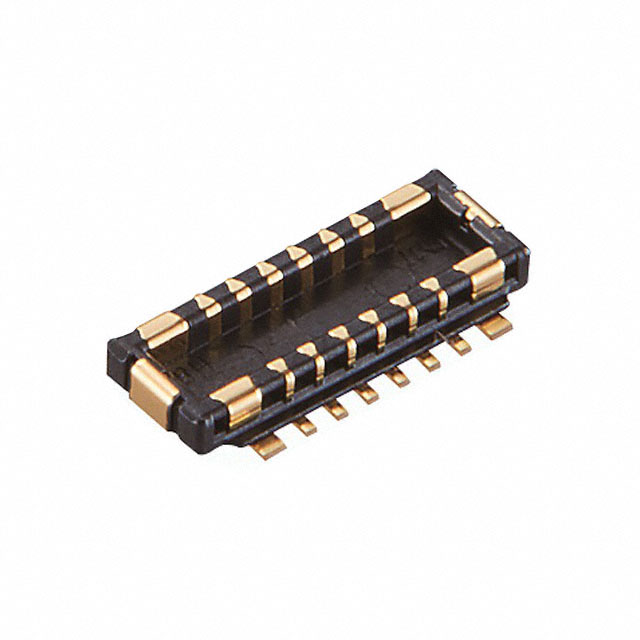

BM46B-12DP-0.35V(53)

Active

Hirose Electric USA, Inc.

CONN HDR 0.35MM SMD GOLD 12POS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 0.35MM SMD GOLD 12POS

Technical Specifications

Parameters and characteristics for this part

Specification	BM46B-12DP-0.35V(53)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.46 mm
Height Above Board	0.018 in
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	12
Number of Rows	2
Pitch [x]	0.35 mm
Pitch [x]	0.014 in

Part	Number of Rows	Mated Stacking Heights	Contact Finish	Pitch [x]	Pitch [x]	Number of Positions	Features	Height Above Board	Height Above Board	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. BM46B-12DP-0.35V(53)	2	0.6 mm	Gold	0.35 mm	0.014 in	12	Solder Retention	0.46 mm	0.018 in	Surface Mount	Header Outer Shroud Contacts
Hirose Electric USA, Inc. BM46B-12DS-0.35V(51)	2	0.6 mm	Gold	0.35 mm	0.014 in	12	Solder Retention	0.61 mm	0.024 in	Surface Mount	Center Strip Contacts Receptacle	1.18 Áin	0.03 Ám
Hirose Electric USA, Inc. BM46B-12DS-0.35V(53)	2	0.6 mm	Gold	0.35 mm	0.014 in	12	Solder Retention	0.61 mm	0.024 in	Surface Mount	Center Strip Contacts Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
