UTP02235P

Active

Souriau-Sunbank by Eaton

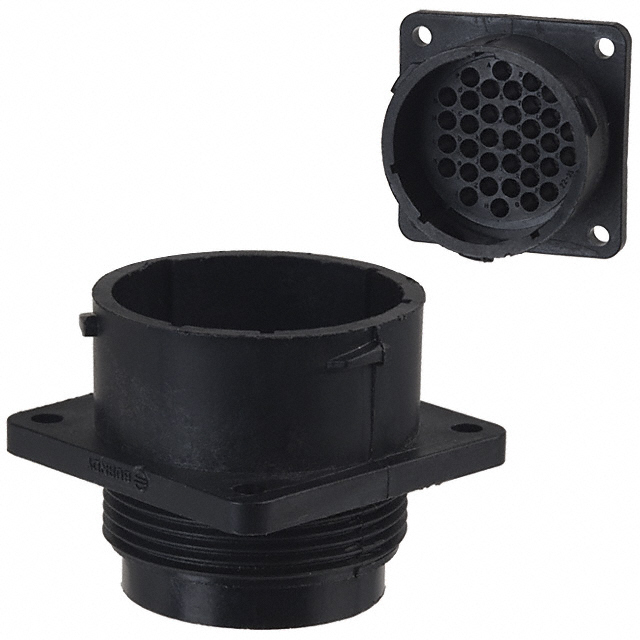

CONN RCPT HSNG MALE 35POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

UTP02235P

Active

Souriau-Sunbank by Eaton

CONN RCPT HSNG MALE 35POS PNL MT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTP02235P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	35
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	22
Shielding	Unshielded
Type	For Male Pins

UTP02 Series

Part	Contact Shape	Orientation	Fastening Type	Contact Size	Housing Color	Material Flammability Rating	Shielding	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Type	Note	Mounting Feature	Number of Positions	Contact Type	Contact Size	Shell Size - Insert	Contact Size	Contact Size	Ingress Protection	Number of Positions [custom]
Souriau-Sunbank by Eaton UTP02235S	Circular	N	Bayonet Lock	16	Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C	22	35	For Female Sockets	Contacts Not Included	Flange	35	Crimp
Souriau-Sunbank by Eaton UTP02411P	Circular	N	Bayonet Lock		Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C			For Male Pins	Contacts Not Included	Flange	11	Crimp	16 (7) 8 (4)	24-11
Souriau-Sunbank by Eaton UTP02448S	Circular	N	Bayonet Lock	16	Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C	24	48	For Female Sockets	Contacts Not Included	Flange	48	Crimp
Souriau-Sunbank by Eaton UTP0247P	Circular	N	Bayonet Lock		Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C			For Male Pins	Contacts Not Included	Flange	9	Crimp		24-7	8	16
Souriau-Sunbank by Eaton UTP02028S	Circular	N	Bayonet Lock	16	Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C	20	28	For Female Sockets	Contacts Not Included	Flange	28	Crimp
Souriau-Sunbank by Eaton UTP02411PH	Circular	N	Bayonet Lock		Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C			For Male Pins	Contacts Not Included	Flange	11	Crimp	16 (7) 8 (4)	24-11			IP65 - Dust Tight Water Resistant
Souriau-Sunbank by Eaton UTP0247S	Circular	N	Bayonet Lock		Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C			For Female Sockets	Contacts Not Included	Flange	8 9	Crimp		24-7	8	16		PE
Souriau-Sunbank by Eaton UTP02235P	Circular	N	Bayonet Lock	16	Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C	22	35	For Male Pins	Contacts Not Included	Flange	35	Crimp
Souriau-Sunbank by Eaton UTP02448P	Circular	N	Bayonet Lock	16	Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C	24	48	For Male Pins	Contacts Not Included	Flange	48	Crimp
Souriau-Sunbank by Eaton UTP02028PH	Circular	N	Bayonet Lock	16	Black	UL94 V-0	Unshielded	Receptacle Housing	125 °C	-25 °C	20	28	For Male Pins	Contacts Not Included	Flange	28	Crimp					IP65 - Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 18.60

Description

General part information

UTP02 Series

35 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

No documents available
