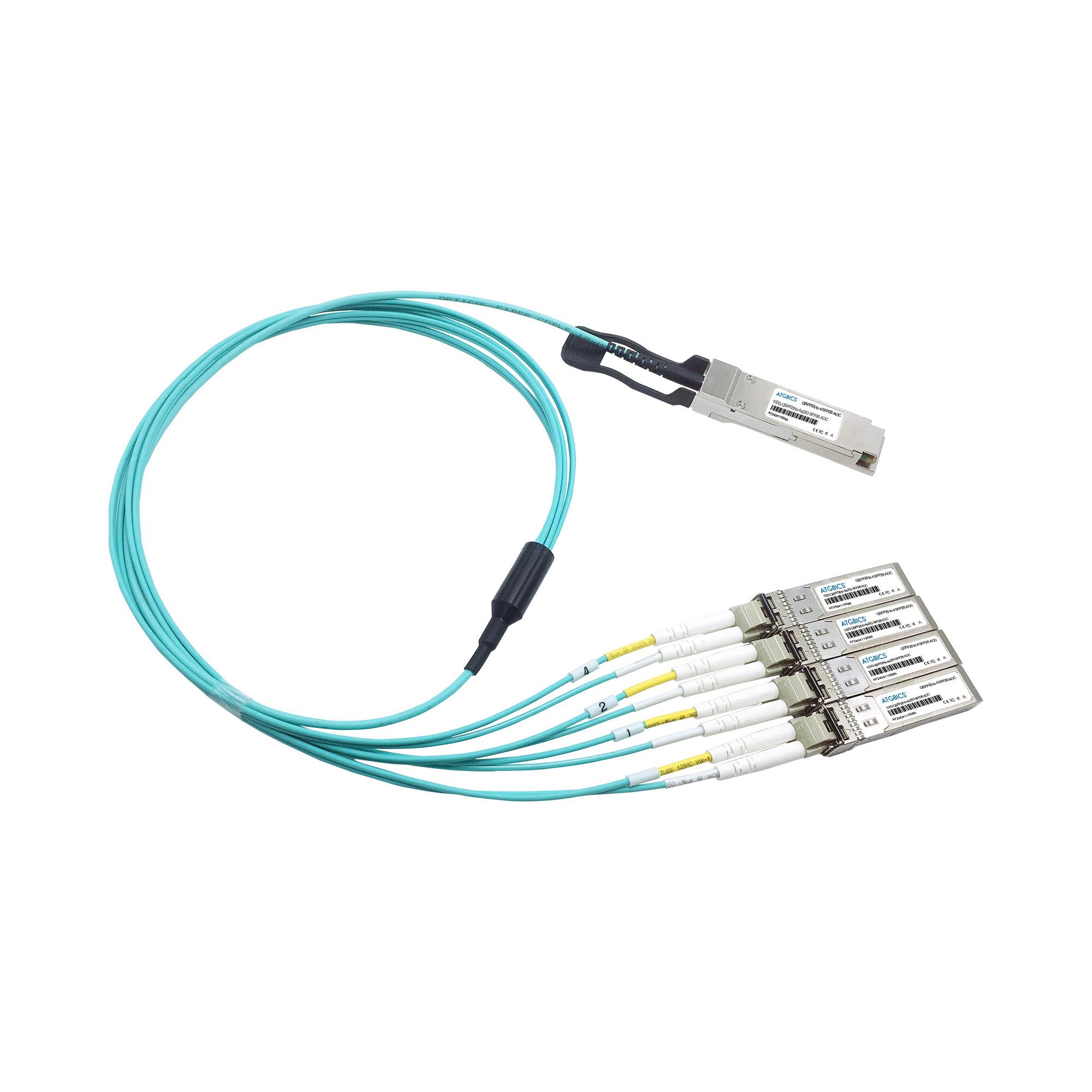

QSFP-4SFP25G-AOC2M-C

Active

ATGBICS

COMPATIBLE AOC 100G 2M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QSFP-4SFP25G-AOC2M-C

Active

ATGBICS

COMPATIBLE AOC 100G 2M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSFP-4SFP25G-AOC2M-C

Cable Connectors	QSFP28 to SFP28 (4)
Cable Type	Round
Color	Aqua, Orange
Connector Type	Plug to Plug
Connector Type	4
Fastening Type	Push-Pull
Features	Active
Gender	Male to Male
Length [x]	2 m
Length [x]	6.56 ft
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Shielding	Unshielded
Usage	Data Center Server Rack, Ethernet, Network

QSFP-4SFP Series

Part	Connector Type	Connector Type	Length [x]	Length [x]	Cable Connectors	Usage	Gender	Features	Color	Shielding	Cable Type	Fastening Type	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
ATGBICS QSFP-4SFP10G-CU1M-C	Plug to Plug	4	1 m	3.28 ft	QSFP+ to SFP+ (4)	Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull
ATGBICS QSFP-4SFP10G-CU7M-C	Plug to Plug	4	7 m	22.97 '	QSFP+ to SFP+ (4)	Data Center Server Rack Ethernet Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull	24 AWG	70 °C	0 °C
ATGBICS QSFP-4SFP25G-AOC3M-C	Plug to Plug	4	3 m	9.84 ft	QSFP28 to SFP28 (4)	Data Center Server Rack Ethernet Network	Male to Male	Active	Aqua Orange	Unshielded	Round	Push-Pull		70 °C	0 °C
ATGBICS QSFP-4SFP25G-CU1.5M-C	Plug to Plug	4			QSFP28 to SFP28 (4)	Data Center Server Rack Ethernet Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull	30 AWG	70 °C	0 °C	4.92 '	1.5 m
ATGBICS QSFP-4SFP25G-CU1M-C	Plug to Plug	4	1 m	3.28 ft	QSFP28 to SFP28 (4)	Data Center Server Rack Ethernet Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull	30 AWG	70 °C	0 °C
ATGBICS QSFP-4SFP25G-AOC2M-C	Plug to Plug	4	2 m	6.56 ft	QSFP28 to SFP28 (4)	Data Center Server Rack Ethernet Network	Male to Male	Active	Aqua Orange	Unshielded	Round	Push-Pull		70 °C	0 °C
ATGBICS QSFP-4SFP10G-CU5M-C	Plug to Plug	4			QSFP+ to SFP+ (4)	Data Center Server Rack Ethernet Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull	26 AWG	70 °C	0 °C
ATGBICS QSFP-4SFP25G-CU5M-C	Plug to Plug	4			QSFP28 to SFP28 (4)	Data Center Server Rack Ethernet Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull	26 AWG	70 °C	0 °C
ATGBICS QSFP-4SFP10G-CU2M-C	Plug to Plug	4	2 m	6.56 ft	QSFP+ to SFP+ (4)	Data Center Server Rack Ethernet Network	Male to Male	Passive	Black	Unshielded	Round	Push-Pull	30 AWG	70 °C	0 °C
ATGBICS QSFP-4SFP25G-AOC1M-C	Plug to Plug	4	1 m	3.28 ft	QSFP28 to SFP28 (4)	Data Center Server Rack Ethernet Network	Male to Male	Active	Aqua Orange	Unshielded	Round	Push-Pull		70 °C	0 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 295.00
		50	$ 280.25
		150	$ 265.50
		1000	$ 250.75

Description

General part information

QSFP-4SFP Series

Position QSFP28 to SFP28 (4) Plug to Plug (4) 6.56' (2.00m) Orange, Aqua Unshielded
