19001-06UL

Active

Grayhill Inc.

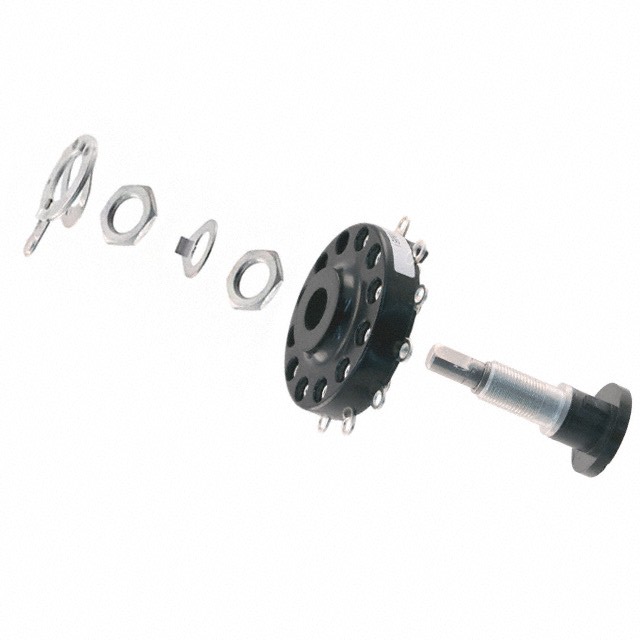

SWITCH ROTARY 6POS 15A 120V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 6POS 15A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Angle of Throw	Actuator Length [x]	Current Rating (Amps)	Number of Decks [custom]	Voltage Rating - DC	Actuator Type [diameter]	Actuator Type	Termination Style	Number of Poles per Deck	Voltage Rating - AC	Contact Timing	Depth Behind Panel [z]	Number of Positions	Circuit per Deck	Index Stops	Contact Material
Grayhill Inc. 19001-07UL	30 °	0.5 in	15A 1A	1	120 V	6.35 mm	Flatted	Solder Lug	1	120 V	Non-Shorting	24.13 mm	7	SP7T	Fixed	Silver Alloy
Grayhill Inc. 19001-02UL	30 °	0.5 in	15A 1A	1	120 V	6.35 mm	Flatted	Solder Lug	1	120 V	Non-Shorting	24.13 mm	2	SPDT	Fixed	Silver Alloy
Grayhill Inc. 19001-04UL	30 °	0.5 in	15A 1A	1	120 V	6.35 mm	Flatted	Solder Lug	1	120 V	Non-Shorting	24.13 mm	4	SP4T	Fixed	Silver Alloy
Grayhill Inc. 19001-06UL	30 °	0.5 in	15A 1A	1	120 V	6.35 mm	Flatted	Solder Lug	1	120 V	Non-Shorting	24.13 mm	6	SP6T	Fixed	Silver Alloy
Grayhill Inc. 19001-03UL	30 °	0.5 in	15A 1A	1	120 V	6.35 mm	Flatted	Solder Lug	1	120 V	Non-Shorting	24.13 mm		SP3T	Fixed	Silver Alloy
Grayhill Inc. 19001-10UL	30 °	0.5 in	15A 1A	1	120 V	6.35 mm	Flatted	Solder Lug	1	120 V	Non-Shorting	24.13 mm	10	SP10T	Fixed	Silver Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 6 Position SP6T 15A (AC), 1A (DC) 120 VAC Panel Mount

Technical documentation and resources

No documents available
