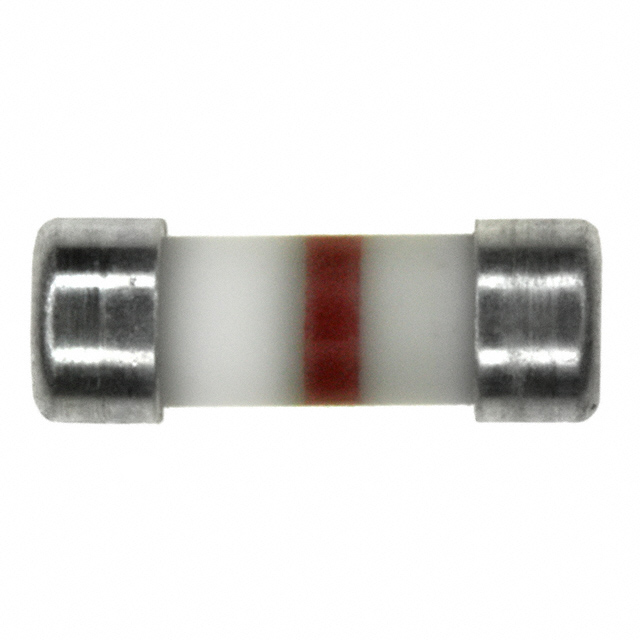

0242.040UR

Active

Littelfuse/Commercial Vehicle Products

FUSE 250V BARRIER FUSE SMT .040A/ TR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Littelfuse/Commercial Vehicle Products

FUSE 250V BARRIER FUSE SMT .040A/ TR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	0242.040UR

Applications	Hazardous Locations
Breaking Capacity @ Rated Voltage	4 kA
Current Rating (Amps)	40 mA
DC Cold Resistance	16.48 Ohms
Features	Intrinsically Safe
Fuse Type	Cartridge
Melting I˛t	0.000078
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Cartridge, Non-Standard
Response Time	Fast Blow
Size / Dimension [diameter]	3.02 mm
Size / Dimension [diameter]	0.119 "
Size / Dimension [x]	0.331 in
Size / Dimension [x]	8.4 mm
Voltage Rating - AC	250 VAC
Voltage Rating - DC	250 V

M BARRIER SMT FUSE 250V .040A

Part	Mounting Type	Features	Voltage Rating - AC	Melting I˛t	Package / Case	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	DC Cold Resistance	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - DC	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Fuse Type	Applications
Littelfuse/Commercial Vehicle Products 0242.040UR	Surface Mount	Intrinsically Safe	250 VAC	0.000078	Cartridge Non-Standard	40 mA	4 kA	16.48 Ohms	3.02 mm	0.119 "	0.331 in	8.4 mm	250 V	Fast Blow	125 °C	-40 °C	Cartridge	Hazardous Locations

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M BARRIER SMT FUSE 250V .040A
