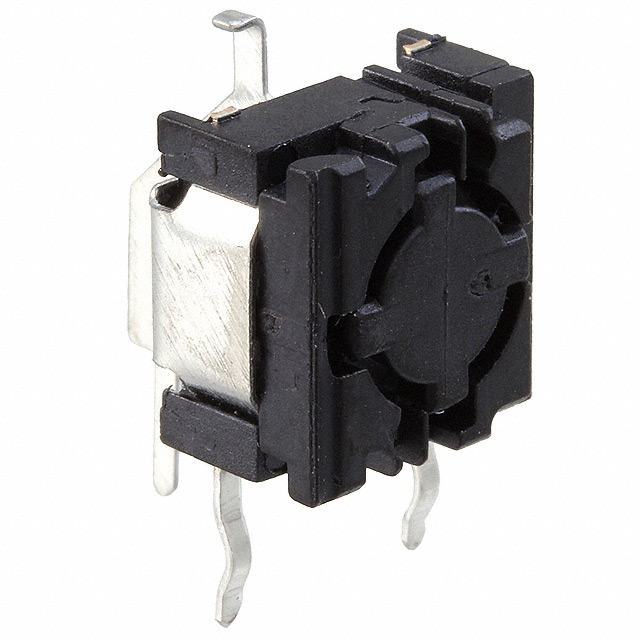

5GTH935RAS

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

5GTH935RAS

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5GTH935RAS

Actuator Length, Right Angle [x]	4.85 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Side Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	350 gf
Operating Temperature [Max]	160 °C
Operating Temperature [Min]	-40 °C
Outline [x]	10 mm
Outline [y]	10 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	PC Pin

5GTH Series

Part	Illumination Type, Color	Features	Contact Rating @ Voltage	Actuator Material	Ingress Protection	Termination Style	Switch Travel	Operating Force	Switch Function	Mechanical Life	Illumination	Circuit	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Actuator Type	Actuator Height off PCB, Vertical [z]	Mounting Type	Illumination Voltage (Nominal)	Actuator Length, Right Angle [x]
MEC Switches 5GTH93501	Blue LED	Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	350 gf	Off-Mom	10000000 Cycles	Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole
MEC Switches 5GTH93561	LED White	Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	350 gf	Off-Mom	10000000 Cycles	Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole	3.05 VDC
MEC Switches 5GTH920		Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	200 gf	Off-Mom	10000000 Cycles	Non-Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole
MEC Switches 5GTH935RAS		Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	350 gf	Off-Mom	10000000 Cycles	Non-Illuminated	SPST-NO	10 mm	10 mm	-40 °C	160 °C	Side Actuated	Plunger for Cap		Through Hole Right Angle		4.85 mm
MEC Switches 5GTH935NCNO		Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	350 gf	On-Mom	1000000 Cycles	Non-Illuminated	SPDT	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole
MEC Switches 5GTH9358222	Green/Red LED	Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	350 gf	Off-Mom	10000000 Cycles	Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole	2 VDC 2.2 VDC
MEC Switches 5GTH920Q		Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	200 gf	Off-Mom	10000000 Cycles	Non-Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole
MEC Switches 5GTH93582	LED Red	Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	350 gf	Off-Mom	10000000 Cycles	Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole	2 VDC
MEC Switches 5GTH965		Sealed - Flux Protection	0.05 A 24 VDC	Polyphenylene Sulfide (PPS)	IP67 - Dust Tight Waterproof	PC Pin	1 mm	650 gf	Off-Mom	10000000 Cycles	Non-Illuminated	SPST-NO	10.1 mm	10.1 mm	-40 °C	160 °C	Top Actuated	Plunger for Cap	6.4 mm	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.37
		10	$ 4.90
		25	$ 4.46
		100	$ 3.85
		300	$ 3.50
		500	$ 3.24
		1000	$ 3.01
		2500	$ 2.89

Description

General part information

5GTH Series

Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
