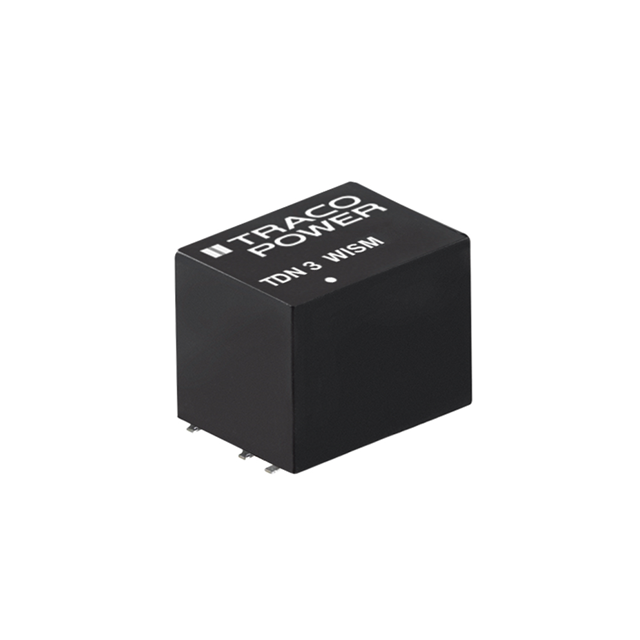

TDN 3-2410WISM

Active

Traco Power

DC DC CONVERTER 3.3V 2.3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TDN 3-2410WISM

Active

Traco Power

DC DC CONVERTER 3.3V 2.3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TDN 3-2410WISM

Applications	ITE (Commercial)
Current - Output (Max) [Max]	700 mA
Efficiency	77 %
Features	Remote On/Off, SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SMD Module, 6 Leads
Power (Watts)	2.3 W
Size / Dimension [x]	13.2 mm
Size / Dimension [x]	0.52 in
Size / Dimension [y]	9.1 mm
Size / Dimension [y]	0.36 "
Size / Dimension [z]	10.2 mm
Size / Dimension [z]	0.4 "
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	3.3 V

TDN 3 Series

Part	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]	Applications	Efficiency	Type	Power (Watts)	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TDN 3-1219WI	9 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	18 V	Remote On/Off SCP	4.5 V	ITE (Commercial)	81 %	Isolated Module	3 W	Through Hole	333 mA	-40 °C	70 °C	1.6 kV	7-DIP Module 6 Leads
Traco Power TDN 3-4810WI	3.3 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	75 V	Remote On/Off SCP	18 V	ITE (Commercial)	77 %	Isolated Module	2.3 W	Through Hole	700 mA	-40 °C	70 °C	1.6 kV	7-DIP Module 6 Leads
Traco Power TDN 3-4812WI	12 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	75 V	Remote On/Off SCP	18 V	ITE (Commercial)	83 %	Isolated Module	3 W	Through Hole	250 mA	-40 °C	70 °C	1.6 kV	7-DIP Module 6 Leads
Traco Power TDN 3-4815WI	24 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	75 V	Remote On/Off SCP	18 V	ITE (Commercial)		Isolated Module	3 W	Through Hole	125 mA	-40 °C	70 °C	1.6 kV	7-DIP Module 6 Leads
Traco Power TDN 3-1212WISM	12 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	18 V	Remote On/Off SCP	4.5 V	ITE (Commercial)	83 %	Isolated Module	3 W	Surface Mount	250 mA	-40 °C	70 °C	1.6 kV	7-SMD Module 6 Leads
Traco Power TDN 3-2411WISM	5 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	36 V	Remote On/Off SCP	9 V	ITE (Commercial)	80 %	Isolated Module	3 W	Surface Mount	600 mA	-40 °C	70 °C	1.6 kV	7-SMD Module 6 Leads
Traco Power TDN 3-2423WI	15 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	2	36 V	Remote On/Off SCP	9 V	ITE (Commercial)		Isolated Module	3 W	Through Hole		-40 °C	70 °C	1.6 kV	7-DIP Module 6 Leads	100 mA	100 mA	-15 V
Traco Power TDN 3-2410WISM	3.3 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	36 V	Remote On/Off SCP	9 V	ITE (Commercial)	77 %	Isolated Module	2.3 W	Surface Mount	700 mA	-40 °C	70 °C	1.6 kV	7-SMD Module 6 Leads
Traco Power TDN 3-1215WI	24 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	1	18 V	Remote On/Off SCP	4.5 V	ITE (Commercial)		Isolated Module	3 W	Through Hole	125 mA	-40 °C	70 °C	1.6 kV	7-DIP Module 6 Leads
Traco Power TDN 3-4823WISM	15 V	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	2	75 V	Remote On/Off SCP	18 V	ITE (Commercial)		Isolated Module	3 W	Surface Mount		-40 °C	70 °C	1.6 kV	7-SMD Module 6 Leads	100 mA	100 mA	-15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 25.70
		10	$ 23.55
		25	$ 22.77
		50	$ 22.20
		100	$ 21.64
		250	$ 20.93
		500	$ 18.43

Description

General part information

TDN 3 Series

Isolated Module DC DC Converter 1 Output 3.3V 700mA 9V - 36V Input
