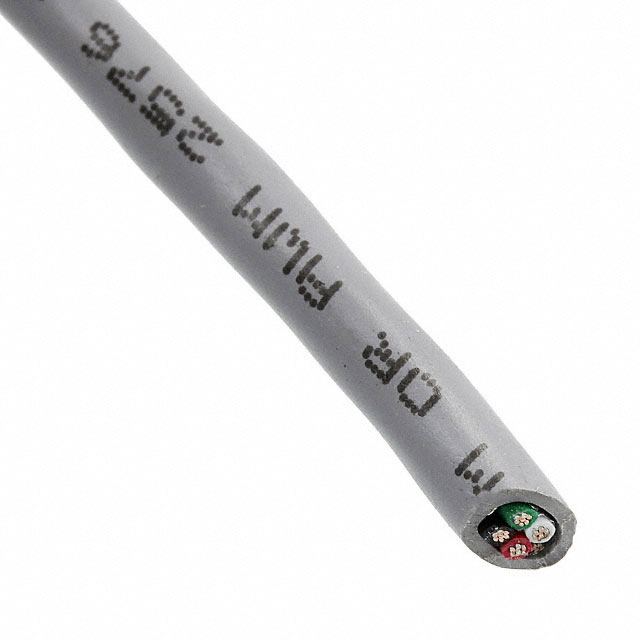

M3244 SL005

Active

ALPHA WIRE

CABLE 4CON 18AWG SLATE SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4CON 18AWG SLATE SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M3244 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	6.05 mm
Jacket (Insulation) Diameter [diameter]	0.238 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2094
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	18 AWG

Part	Ratings	Shield Type	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Features	Length [x]	Length [x]	Wire Gauge	Conductor Insulation	Jacket Color	Conductor Material	Shield Coverage	Number of Conductors
ALPHA WIRE M3244 SL002	UL Style 2094	Foil	300 V	6.05 mm	0.238 in	16	30 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Aluminum	0.02 in	0.508 mm	Multi-Conductor	Drain Wire	500 '	152.4 m	18 AWG	Polyethylene (PE)	Slate	Copper Tinned	100 %	4
ALPHA WIRE M3244 SL005	UL Style 2094	Foil	300 V	6.05 mm	0.238 in	16	30 AWG	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Aluminum	0.02 in	0.508 mm	Multi-Conductor	Drain Wire	100 ft	30.5 m	18 AWG	Polyethylene (PE)	Slate	Copper Tinned	100 %	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Slate 18 AWG Foil 100.0' (30.5m)
