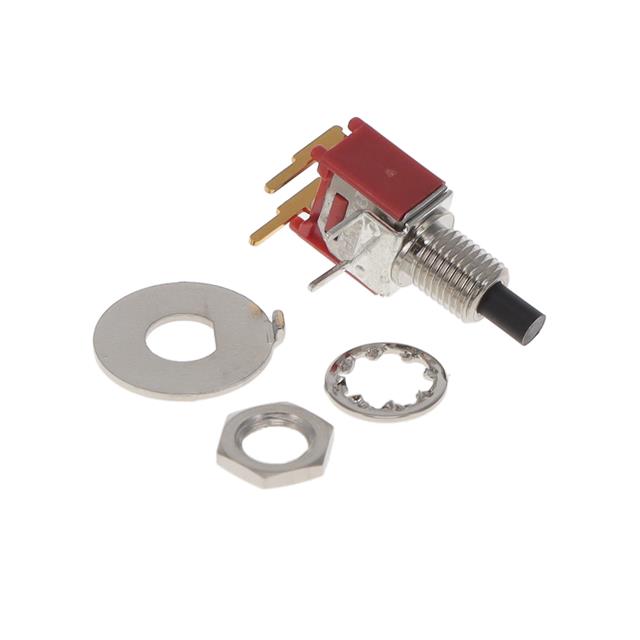

800SP9B5M6REH
ActiveE-Switch
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
800SP9B5M6REH
ActiveE-Switch
SWITCH PUSH SPST-NO 0.4VA 20V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 800SP9B5M6REH |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Mounting Type | Panel Mount, Right Angle, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 4.95 mm |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
800SP9 Series
| Part | Termination Style | Actuator Type | Voltage Rating - AC | Electrical Life | Circuit | Current Rating (Amps) | Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Actuator Marking | Color - Actuator/Cap | Voltage Rating - DC | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
E-Switch | PC Pin | Round Plunger | 20 V | 50000 Cycles | SPST-NO | 0.4 VA | Standard | Off-Mom | -30 ░C | 85 °C | Panel Mount Rear Right Angle | No Marking | Black | 20 V | 4.95 mm |
E-Switch | PC Pin | Button Round | 20 V | 50000 Cycles | SPST-NO | 0.4 VA | Standard | Off-Mom | -30 ░C | 85 °C | Through Hole | No Marking | Black | 20 V | |
E-Switch | PC Pin | Button Round | 20 V | 50000 Cycles | SPST-NO | 0.4 VA | Standard | Off-Mom | -30 ░C | 85 °C | Through Hole Right Angle | No Marking | Black | 20 V | |
E-Switch | PC Pin | Round Plunger | 20 V | 50000 Cycles | SPST-NO | 0.4 VA | Standard | Off-Mom | -30 ░C | 85 °C | Through Hole | No Marking | Black | 20 V | |
E-Switch | PC Pin | Round Plunger | 120 V | 50000 Cycles | SPST-NO | 3 A | Standard | Off-Mom | -30 ░C | 85 °C | Through Hole | No Marking | Black | 28 V | |
E-Switch | PC Pin | Round Plunger | 20 V | 50000 Cycles | SPST-NO | 0.4 VA | Standard | Off-Mom | -30 ░C | 85 °C | Panel Mount Rear Right Angle | No Marking | Black | 20 V | 0.25 in |
E-Switch | PC Pin | Round Plunger | 120 V | 50000 Cycles | SPST-NO | 3 A | Standard | Off-Mom | -30 ░C | 85 °C | Through Hole Right Angle | No Marking | Black | 28 V | |
E-Switch | Solder Lug | Round Plunger | 120 V | 50000 Cycles | SPST-NO | 3 A | Standard | Off-Mom | -30 ░C | 85 °C | Panel Mount Rear | No Marking | Black | 28 V | 0.25 in |
E-Switch | PC Pin | Round Plunger | 20 V | 50000 Cycles | SPST-NO | 0.4 VA | Standard | Off-Mom | -30 ░C | 85 °C | Panel Mount Rear | No Marking | Black | 20 V | 0.25 in |
E-Switch | PC Pin | Round Plunger | 120 V | 50000 Cycles | SPST-NO | 3 A | Standard | Off-Mom | -30 ░C | 85 °C | Panel Mount Rear | No Marking | Black | 28 V | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.15 | |
| 10 | $ 3.70 | |||
| 25 | $ 3.51 | |||
| 50 | $ 3.38 | |||
| 240 | $ 3.06 | |||
| 480 | $ 2.82 | |||
| 1200 | $ 2.69 | |||
Description
General part information
800SP9 Series
Pushbutton Switch SPST-NO Standard Panel Mount, Right Angle, Rear
Documents
Technical documentation and resources
No documents available
