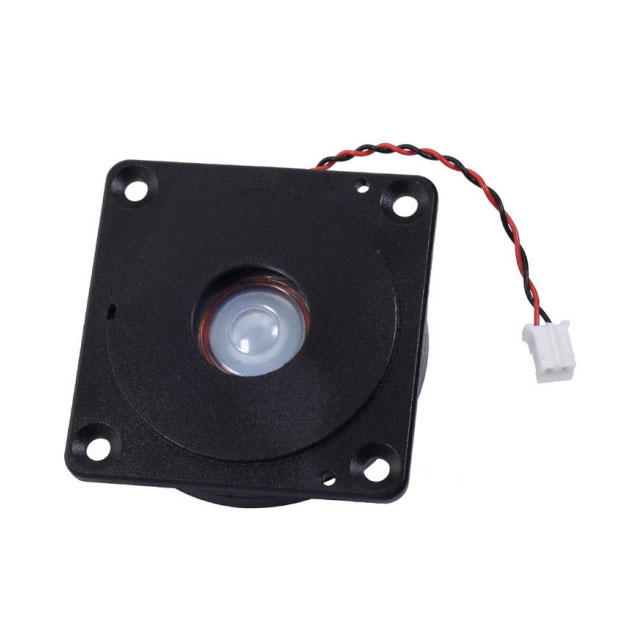

CES-434313-28PM-67

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 106DB

Search across all available documentation for this part.

Active

CUI Devices

SPEAKER 8OHM 2W TOP PORT 106DB

Technical Specifications

Parameters and characteristics for this part

Specification	CES-434313-28PM-67

Distortion Rating	10 %
Efficiency - Testing	2W/100mm
Efficiency - Type	Sound Pressure Level (SPL)
Frequency - Self Resonant	1400 Hz
Frequency Range [Max]	8 kHz
Frequency Range [Min]	1.12 kHz
Height - Seated (Max) [Max]	0.514 in
Height - Seated (Max) [Max]	13.05 mm
Impedance	8 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Material - Cone	Polyethylene Naphthalate (PEN)
Material - Magnet	Nd-Fe-B
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-30 ░C
Port Location	Top
Power - Max [Max]	2.5 W
Power - Rated	2 W
Shape	Square
Technology	Magnetic
Termination	Wire Leads with Connector
Type	Enclosure Included, General Purpose

Part	Termination	Power - Rated	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Efficiency - Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Efficiency - Testing	Distortion Rating	Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Material - Cone	Technology	Material - Magnet	Shape	Port Location	Frequency - Self Resonant	Impedance
CUI Devices CES-434313-28PM-67	Wire Leads with Connector	2 W	1.12 kHz	8 kHz	2.5 W	Sound Pressure Level (SPL)	0.514 in	13.05 mm	2W/100mm	10 %	Enclosure Included General Purpose	65 °C	-30 ░C	IP67 - Dust Tight Waterproof	Polyethylene Naphthalate (PEN)	Magnetic	Nd-Fe-B	Square	Top	1400 Hz	8 Ohms
CUI Devices CES-434313-28PM-67	Wire Leads with Connector	2 W	1.12 kHz	8 kHz	2.5 W	Sound Pressure Level (SPL)	0.514 in	13.05 mm	2W/100mm	10 %	Enclosure Included General Purpose	65 °C	-30 ░C	IP67 - Dust Tight Waterproof	Polyethylene Naphthalate (PEN)	Magnetic	Nd-Fe-B	Square	Top	1400 Hz	8 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Ohms General Purpose, Enclosure Included Speaker 2 W 1.12 kHz ~ 8 kHz Top Square
