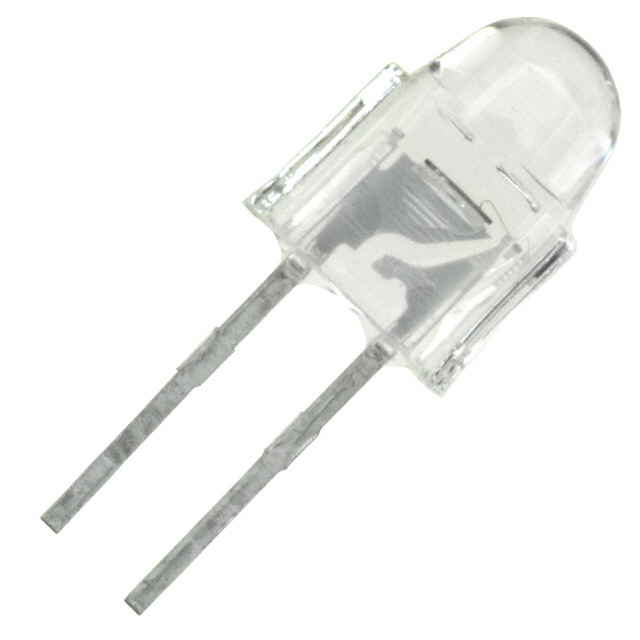

SFH 2505-Z
Activeams-OSRAM USA INC.
SENSOR PHOTODIODE 900NM RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
SFH 2505-Z
Activeams-OSRAM USA INC.
SENSOR PHOTODIODE 900NM RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 2505-Z |
|---|---|
| Active Area | 1 mm˛ |
| Current - Dark (Typ) | 100 pA |
| Diode Type | PIN |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Response Time | 5 ns |
| Spectral Range [Max] [custom] | 1100 nm |
| Spectral Range [Min] [custom] | 750 nm |
| Viewing Angle | 30 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 50 V |
| Wavelength | 900 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.32 | |
Description
General part information
SFH 2505 Series
Photodiode 900nm 5ns 30° Radial
Documents
Technical documentation and resources
No documents available
