903-422J-51A

Active

Amphenol RF

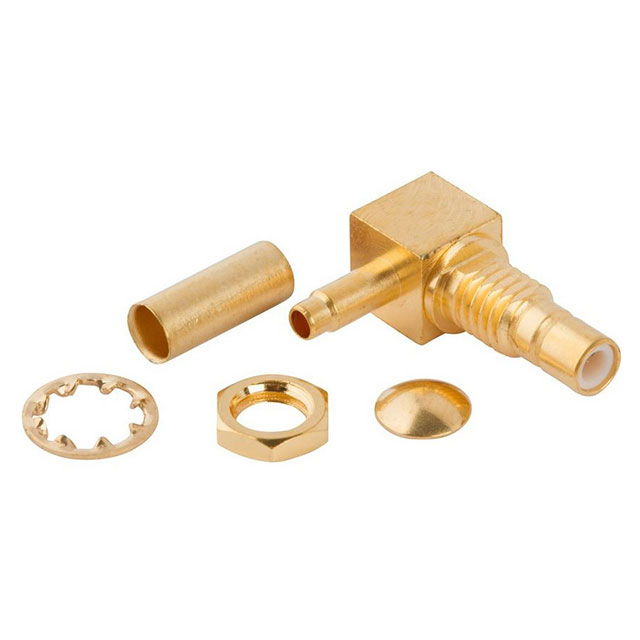

CONN SMB JACK R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMB JACK R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	903-422J-51A

Body Finish	Gold
Body Material	Brass
Cable Group	316, RG-188
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Nut, 1 Ferrule, 1 Lockwasher, 1 Connector
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Cable Group	Connector Type	Number of Ports	Includes	Body Finish	Impedance	Center Contact Plating	Contact Termination	Mating Cycles	Connector Style	Shield Termination	Mounting Type	Center Contact Material	Dielectric Material	Fastening Type	Housing Color	Insertion Loss
Amphenol RF 903-422J-51A	4 GHz	-65 ░C	165 °C	Brass	316 RG-188	Jack Male Pin	1	1 Connector 1 End Cap 1 Ferrule 1 Lockwasher 1 Nut	Gold	50 Ohms	Gold	Solder	500	SMB	Crimp	Free Hanging (In-Line) Right Angle	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Snap-On	Gold	0.6 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 27.33

General part information

SMB Connector Jack, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
