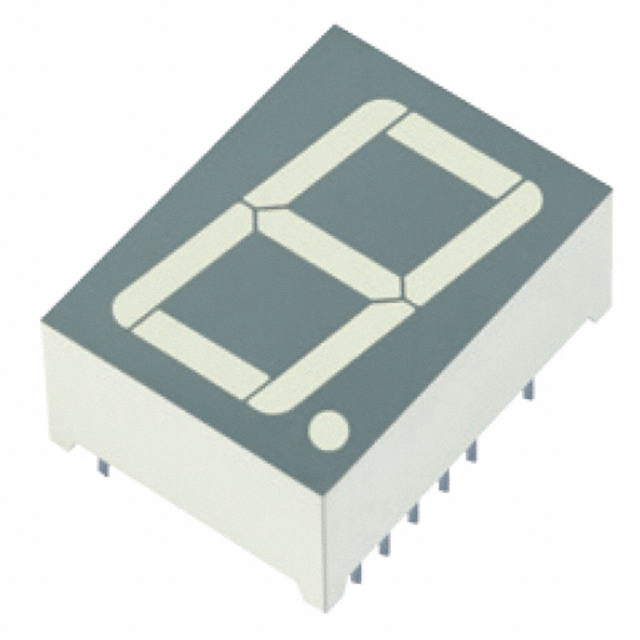

XDVG20A-1
ActiveSunLED
DISPLAY 7SEG 0.8" SGL GRN 16DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XDVG20A-1
ActiveSunLED
DISPLAY 7SEG 0.8" SGL GRN 16DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XDVG20A-1 |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 20.32 mm |
| Digit/Alpha Size | 0.8 in |
| Display Type | 7-Segment |
| Millicandela Rating | 9 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 16-DIP |
| Package / Case | 15.24 mm, 13 Leads, 0.6 in |
| Power Dissipation (Max) [Max] | 75 mw |
| Size / Dimension | 0.984 ", 0.417 ", 0.732 " |
| Size / Dimension | 25 mm, 10.6 mm, 18.6 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2000 | $ 1.34 | |
Description
General part information
XDVG20 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2V 10mA 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) 16-DIP (0.600", 15.24mm), 13 Leads
