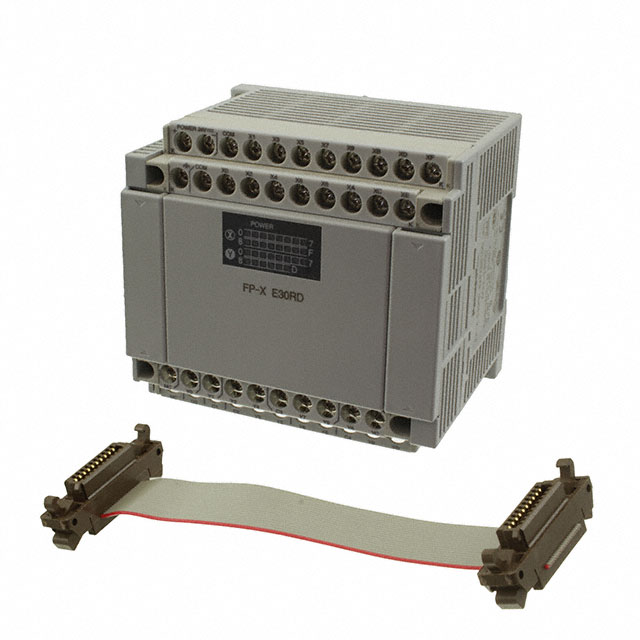

AFPX-E30RD
ActivePanasonic Industrial Automation Sales
I/O MOD 16 DIGITAL 14 RELAY 24V
Deep-Dive with AI
Search across all available documentation for this part.
AFPX-E30RD
ActivePanasonic Industrial Automation Sales
I/O MOD 16 DIGITAL 14 RELAY 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFPX-E30RD |
|---|---|
| For Use With/Related Products | FP-X Series |
| Mounting Type | DIN Rail |
| Number of Inputs and Type [custom] | 16 |
| Number of Inputs and Type [custom] | Digital |
| Number of Outputs and Type [custom] | 14 |
| Number of Outputs and Type [custom] | Relay |
| Termination Style | Screw Terminal |
| Type | Input, Output (I/O) Module |
| Voltage - Supply | 24 VDC |
| Weight | 450 g |
| Weight | 0.984 lb |
AFPX-E Series
| Part | For Use With/Related Products | Number of Outputs and Type [custom] | Number of Outputs and Type [custom] | Weight | Weight | Termination Style | Type | Mounting Type | Number of Inputs and Type [custom] | Number of Inputs and Type [custom] | Voltage - Supply | Voltage - Supply [Min] | Voltage - Supply [Max] | Number of Outputs and Type [x] | Number of Outputs and Type [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Industrial Automation Sales | FP-X Series | 14 | Solid State | 0.904 lb | 410.05 g | Screw Terminal | Input Output (I/O) Module | DIN Rail | 16 | Digital | 24 VDC | ||||
Panasonic Industrial Automation Sales | FP-X Series | 14 | Relay | 0.984 lb | 450 g | Screw Terminal | Input Output (I/O) Module | DIN Rail | 16 | Digital | 24 VDC | ||||
Panasonic Industrial Automation Sales | FP-X Series | 14 | Solid State | 0.948 lb | 430.01 g | Screw Terminal | Input Output (I/O) Module | DIN Rail | 16 | Digital | 100 VAC | 240 VAC | |||
Panasonic Industrial Automation Sales | FP-X Series | 14 | Relay | 1.1 lbs | 499 g | Screw Terminal | Input Output (I/O) Module | DIN Rail | 16 | Digital | 100 VAC | 240 VAC | |||
Panasonic Industrial Automation Sales | FP-X Series | 0.419 lb | 190.06 g | Screw Terminal | Input Module | DIN Rail | 16 | Digital | |||||||
Panasonic Industrial Automation Sales | FP-X Series | Relay | 0.43 lb | 195.04 g | Screw Terminal | Input Output (I/O) Module | DIN Rail | 8 | Digital | 8 | |||||
Panasonic Industrial Automation Sales | FP-X Series | Solid State | 0.397 lb | 180.08 g | Screw Terminal | Input Output (I/O) Module | DIN Rail | 8 | Digital | 8 | |||||
Panasonic Industrial Automation Sales | FP-X Series | 0.143 lb | 64.86 g | Input Output (I/O) Module | DIN Rail |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 338.00 | |
| 10 | $ 307.27 | |||
Description
General part information
AFPX-E Series
Input, Output (I/O) Module DIN Rail 24VDC
